Custom Concrete Brick Mould

From the initial product drawing and mould structure to machining, demolding, and machine compatibility, PRO develops the mould around the customer's actual production process. Whether the required product is hollow, solid, interlocking, irregular, or designed for a specialized engineering application, the Custom Concrete Brick Mould can be engineered to match the finished concrete product and the automation level of the customer's equipment.

Start with Your Product, Not a Standard Mould

1. Custom Block Dimensions and Geometry

PRO can manufacture mould cavities according to customer drawings, samples, or technical specifications. Block length, width, height, wall thickness, hole configuration, connection profile, and other dimensions can be customized for different cement product requirements.

2. Special Shapes for Engineering Applications

The Custom Concrete Brick Mould can produce hollow blocks, solid blocks, interlocking blocks, irregular blocks, four-legged structures, twisted I-beam blocks, U-shaped channels, grass pavers, and other non-standard concrete products. This makes the mould suitable for projects where conventional rectangular block moulds are insufficient.

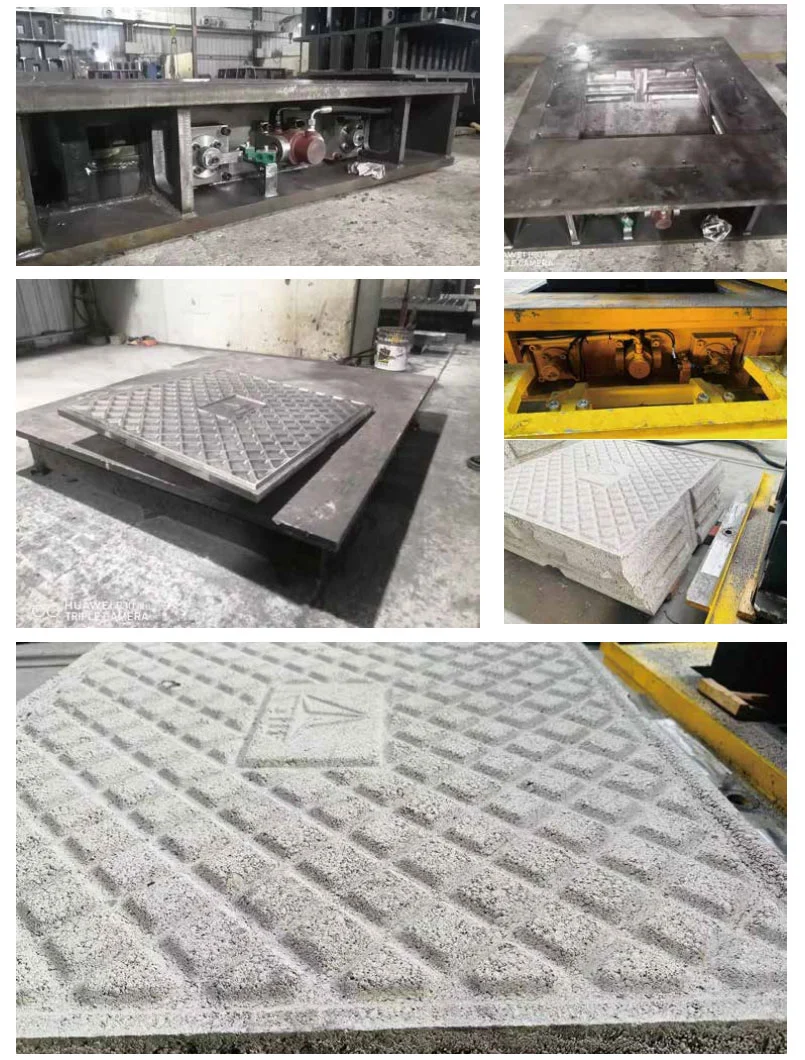

3. Customized Surface and Texture

Surface texture can be integrated into the mould cavity to create specific visual or functional finishes. PRO also supports logo engraving, pattern engraving, and customized textures for customers who need branded or architecturally distinctive concrete products.

Built Around Your Production Equipment

1. Machine-Compatible Mould Design

A custom mould must work correctly with the customer's existing block making equipment. PRO considers machine dimensions, mould installation, pressure head configuration, vibration characteristics, demolding method, and automation requirements during the design stage.

2. Hydraulic or Mechanical Demolding

Different production lines have different demolding requirements. PRO can configure hydraulic or mechanical demolding mechanisms according to the customer's equipment and concrete product structure, helping achieve faster release while reducing damage to finished blocks.

3. Modular Structure for Automated Production

The modular mould structure supports rapid component replacement and adaptation to different production equipment. This is particularly useful for manufacturers producing several concrete products or operating automated production lines where minimizing downtime is important.

Materials Selected for Long-Term Production

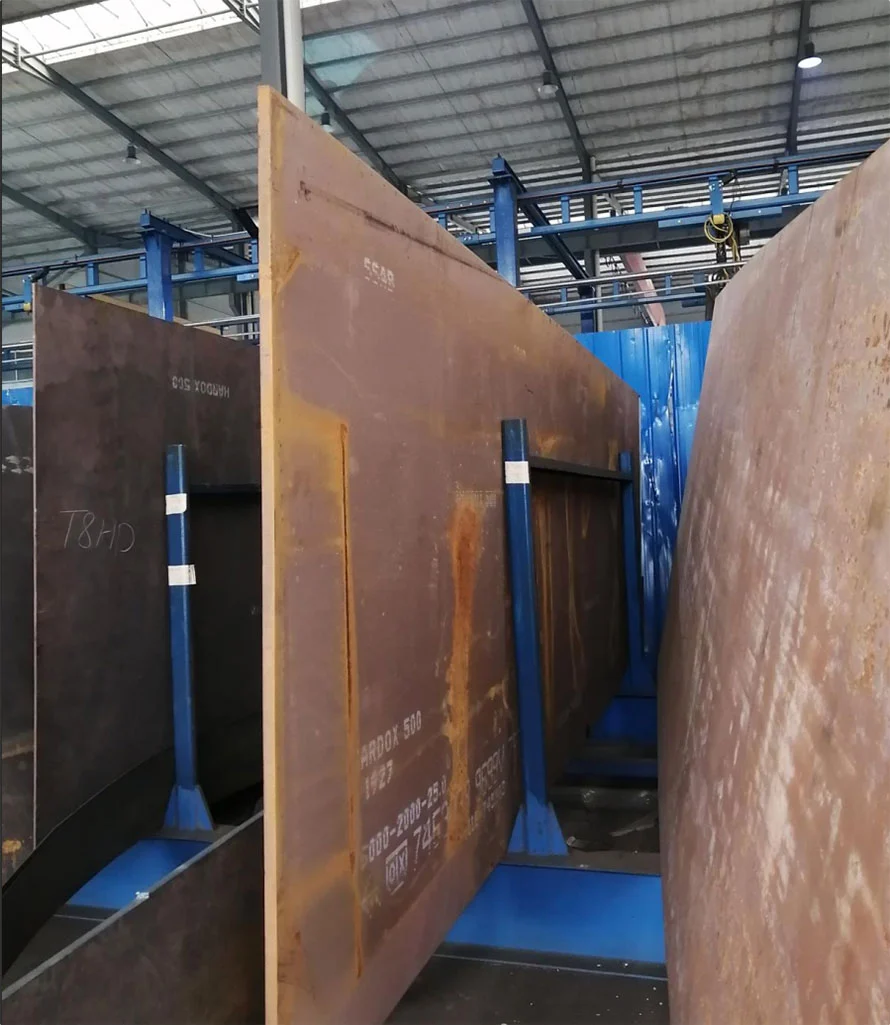

1. Q355 or Hardox Steel Construction

The main mould structure can be manufactured from Q355 steel plate or Hardox steel according to the required strength and wear resistance. These materials provide a robust foundation for repeated pressure, vibration, and mechanical operation.

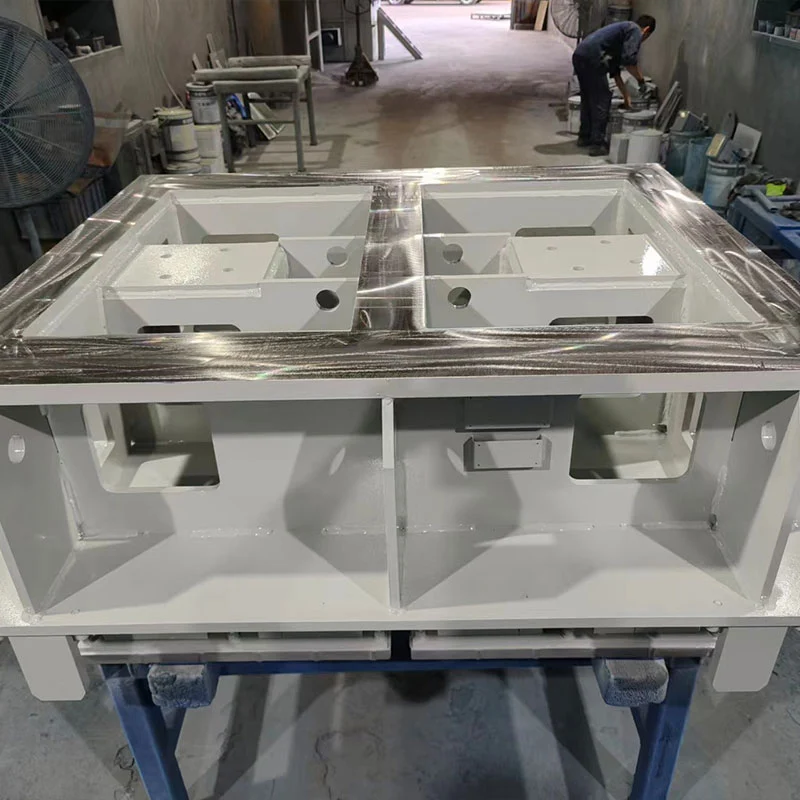

2. Reinforced Mould Structure

Internal reinforcing ribs and welded supports strengthen the mould structure and help resist deformation during high-pressure forming and vibration. This is particularly important when producing large, heavy, or structurally complex concrete blocks.

3. Wear-Resistant Surface Treatment

Key mould components can be strengthened through chrome plating and nitriding treatments. These treatments improve surface wear resistance and help maintain critical dimensions during frequent production.

Precision Is Controlled at the Mould Cavity

1. CNC-Machined Forming Cavity

The forming cavity is precision machined according to the approved design drawing. CNC processing helps control dimensional tolerances and maintain consistent cavity geometry across the mould.

2. Dimensional Tolerance up to ±0.5 mm

For applicable mould designs, cavity dimensions can be controlled within approximately ±0.5 mm. Consistent dimensional accuracy helps improve block interchangeability, alignment, and installation quality in downstream construction applications.

3. Smooth Inner Wall for Cleaner Demolding

The mould cavity can incorporate a polished inner wall and anti-stick coating. This reduces concrete residue on the mould surface and helps finished products release more smoothly, reducing edge damage and cleaning requirements.

One Mould, Multiple Production Possibilities

1. Interchangeable Mould Modules

Interchangeable modules allow selected mould components to be replaced or changed according to different product requirements. One mould system can therefore be configured for multiple related block designs, helping manufacturers reduce investment in completely independent mould sets.

2. Material-Saving Structural Designs

PRO can optimize hollow, four-legged, and twisted I-beam block structures to reduce unnecessary concrete consumption while maintaining the required strength. Depending on the product design, optimized structures can reduce concrete usage by up to 30%.

3. Integrated Heating and Cooling

Heating and cooling channels can be incorporated into the mould when required by the production process. Controlled thermal management can accelerate concrete curing and improve production efficiency for applications requiring faster cycle times.

Where Custom Concrete Brick Moulds Are Used

1. Hydraulic and Marine Engineering

PRO custom moulds can produce hollow square blocks, twisted I-beam blocks, wave-damping blocks, and other specialized concrete elements used for breakwaters, revetments, river management, coastal protection, and hydraulic engineering projects.

2. Roads and Transportation Infrastructure

Customized moulds can produce slope protection bricks, curbs, U-shaped channels, drainage ditches, bollards, and other precast components used for roadbeds, slope stabilization, drainage systems, and transportation infrastructure.

3. Ecological and Landscape Projects

Grass pavers, permeable bricks, decorative blocks, and other customized concrete products can be manufactured for ecological slope protection, garden walkways, landscape architecture, and environmentally oriented construction projects.

4. Industrial and Municipal Engineering

Custom drainage blocks, soundproof blocks, and specialized concrete components can be designed for municipal drainage systems, sound barriers, industrial facilities, and other infrastructure projects requiring non-standard precast products.

From Drawing to Finished Mould

1. Technical Drawing Review

Customers can provide product drawings, samples, machine information, or basic dimensional requirements. PRO's technical team evaluates the product geometry and production conditions before recommending a suitable mould structure.

2. Mould Structure Development

Based on the product and machine requirements, PRO develops the main frame, cavity, demolding system, support structure, interchangeable components, and other necessary elements. The design can be optimized for automated or semi-automated production.

3. Precision Machining and Treatment

After the design is confirmed, the mould components are manufactured through precision machining. Critical parts can undergo heat treatment, nitriding, chrome plating, or other surface treatments according to the expected production conditions.

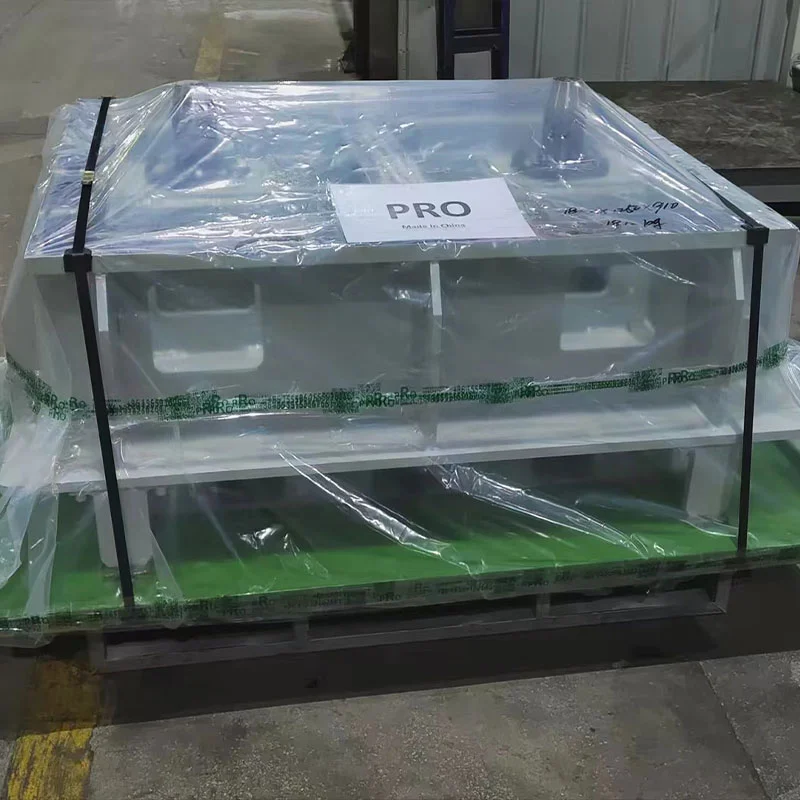

4. Assembly and Production Verification

The completed mould is assembled and inspected to verify dimensional accuracy, component matching, demolding function, and overall structure. This process helps ensure that the finished mould is suitable for integration with the customer's concrete block production equipment.

Specifications

Questions Buyers Ask Before Ordering

1. What information does PRO need to design a custom concrete brick mould?

Customers can provide a product drawing, finished block sample, block dimensions, required material strength, machine model, production method, and target output. If a complete drawing is unavailable, PRO can evaluate the available product information and discuss the required mould structure.

2. Can PRO make irregular concrete block moulds?

Yes. PRO specializes in customized moulds and can develop forming cavities for hollow, solid, interlocking, irregular, four-legged, twisted I-beam, channel-shaped, and other special concrete products.

3. Can one mould produce different concrete block designs?

For suitable product families, PRO can use interchangeable modules to create a multi-purpose mould structure. The actual configuration depends on the similarity between the products and the customer's production equipment.

4. Can the mould include our company logo or product texture?

Yes. Logo engraving, surface textures, patterns, and other customized markings can be incorporated into the mould design according to the required finished product appearance.

5. How does PRO ensure mould accuracy?

PRO uses CNC machining for critical forming surfaces and controls mould dimensions according to the approved technical drawings. For applicable designs, dimensional tolerance can be maintained within approximately ±0.5 mm.

6. Can the mould be integrated into an automated production line?

Yes. PRO develops mould structures according to the automation requirements of the customer's equipment. Hydraulic or mechanical demolding, interchangeable modules, and heating or cooling channels can be incorporated when required.

PRO Custom Concrete Brick Mould Manufacturer

PRO has more than 20 years of experience in the concrete block mould industry and specializes in developing customized moulds for customers with non-standard concrete product requirements. Rather than offering only fixed mould specifications, PRO provides one-on-one technical services covering product analysis, mould design, material selection, precision machining, heat treatment, demolding configuration, and machine compatibility.

With Hardox steel and other high-performance material options, CNC-precision forming cavities, modular construction, customized surface treatment, and optional heating and cooling systems, PRO Custom Concrete Brick Mould solutions are designed for demanding construction, hydraulic, municipal, transportation, industrial, and landscape applications.

From a single product drawing to a complete production mould, PRO works with customers to develop a practical solution matched to their equipment, product requirements, and production goals.
