Paver Concrete Brick Mold

PRO Paver Concrete Brick Molds are currently the most advanced high-end mold products on the market, specifically developed for MASA/HESS brick-making machines. Our factory employs cutting-edge heat treatment technology and innovative structural design in the production process, strictly controlling every production stage to ensure product quality. They not only meet the high standards of concrete paving brick production but also boast a 100,000-cycle lifespan, making them a reliable choice for large-scale continuous brick production.

Product Parameter (Specification)

Core Features

The PRO Paver Concrete Brick Mold integrates multiple advanced technologies and user-friendly design, excelling in production efficiency and product quality. Its core features are as follows:

1. Employs the latest international standard production processes, ensuring the precision and stability of mold production;

2. Equipped with a new vacuum carburizing and integral frame heat treatment process controlled by German PE, effectively improving the mold's wear resistance and service life;

3. Maximizes mechanized production, reduces human error, and adapts to the automated production needs of modern brick factories;

4. Possesses a professional quality testing laboratory to ensure that every product meets strict quality standards;

5. Uses special alloy materials from top steel suppliers, laying the foundation for the mold's high hardness and durability;

6. Excellent hardness indicators: insert hardness 60-65 HRC, tamping head hardness 60-62 HRC, carburized layer thickness 1.1-1.4mm;

7. Adopts a detachable design, with replaceable bolts on the mold base plate for easy replacement and maintenance, reducing production downtime;

8. The upper mold base plate is equipped with a heating device to reduce viscosity, significantly improving the surface quality of the concrete bricks and ensuring a good finished product.

9. The flexible boot design, combined with synchronous shock-absorbing rubber, effectively improves the surface smoothness of the paving bricks and achieves uniform compaction of the aggregate.

Wide Applications

Leveraging its superior performance and customizable design, PRO Paver Concrete Brick Mold is widely used in various engineering fields. The finished concrete paving bricks can meet the paving needs of different scenarios:

1. Municipal Engineering: Urban sidewalks, non-motorized vehicle lanes, pedestrian streets, municipal squares, bus stops, and tactile paving areas for the visually impaired;

2. Landscape Architecture: Park trails, scenic roads, green squares, flower beds, courtyards, and leisure areas;

3. Residential and Industrial Areas: Residential community roads, industrial park walkways, parking lots, factory entrance roads, and office building plazas;

4. Transportation Infrastructure: Parking lot paving, lane dividers, service area paving, and paving in schools, hospitals, and commercial areas;

5. Ecological Permeable Projects: Permeable pavements, rainwater harvesting pavements, grassed parking lots, riverbank protection, and landscaped ecological walkways.

Production Details

PRO Paver Concrete Brick Mold is a precast concrete paving brick forming mold used in conjunction with cement brick making machines and vibrating tables. Our factory adheres to high standards in every production detail to create high-quality molds. The mold uses thickened steel plates and high-quality Hardox steel as core raw materials, resulting in a robust structure, precise dimensions, and the ability to withstand the high-intensity production environment of repeated pressing and vibration.

In terms of structural design, the Paver Concrete Brick Mold employs a freely assembleable spiral locking design, ensuring the mold's stability during production while facilitating the disassembly, assembly, and replacement of components, significantly improving the convenience of daily use and maintenance. The mold's inner cavity is polished to a smooth and flat surface, ensuring smooth demolding and stable forming of the concrete paving bricks, avoiding defects such as sticking and incomplete brick forming.

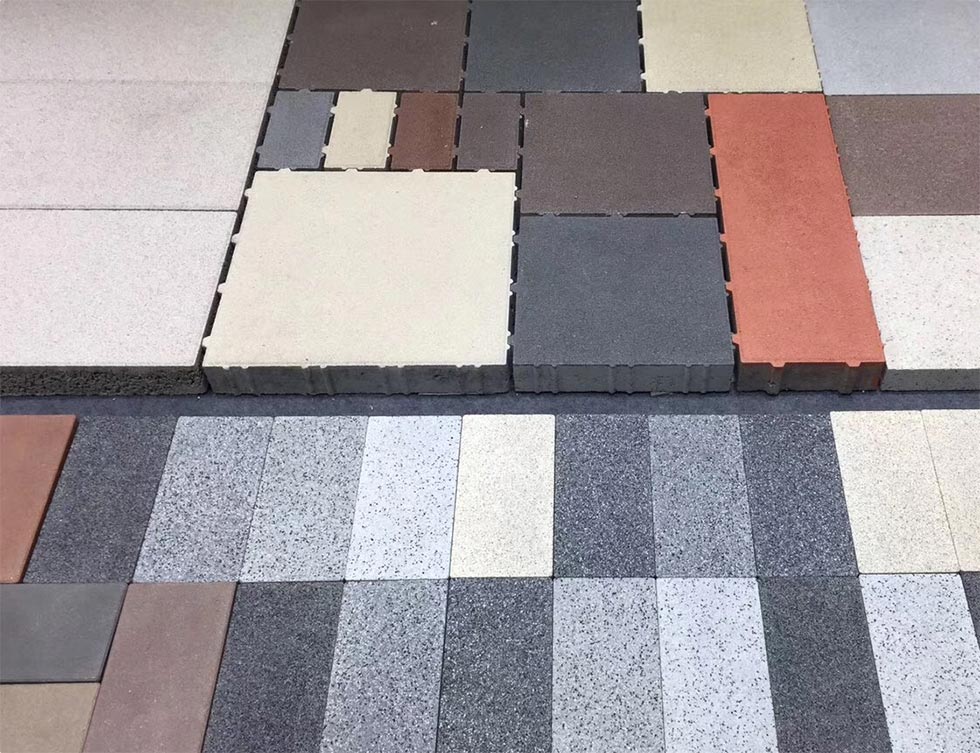

The Paver Concrete Brick Mold is suitable for mass production of various concrete products such as paving bricks, permeable bricks, sidewalk bricks, plaza bricks, grass pavers, and tactile paving bricks. It can be customized in terms of specifications, patterns, and hole types according to customer needs, perfectly meeting the paving brick production needs of different scenarios such as municipal engineering, landscaping, residential areas, and factories. It has the advantages of long service life and high production efficiency, making it an indispensable core equipment for concrete paving brick production enterprises.

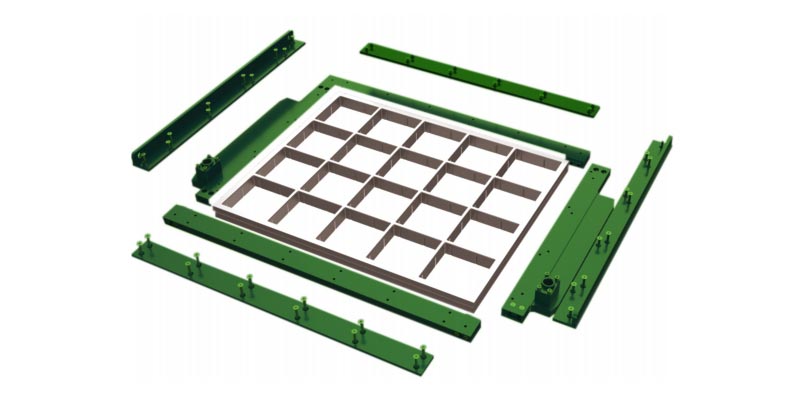

Detachable design

Raw material image - Hardox Steel

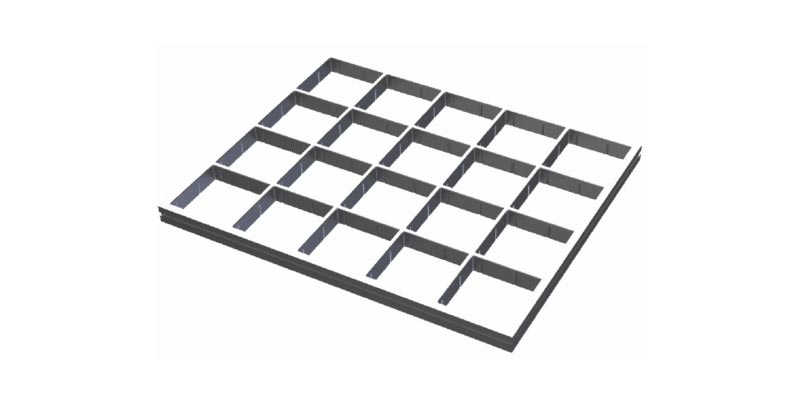

Design structure - Freely assembleable screw-locking design
