Interlocking Concrete Paver Mould

Designed with a service life of up to 100,000 cycles, the Interlocking concrete paver mould supports paver thicknesses of 50 mm, 60 mm, 80 mm, and 100 mm, while customized block shapes and patterns are also available. The combination of high hardness, replaceable components, and a detachable structure helps manufacturers maintain stable production while controlling long-term mould costs.

Designed Around the Block You Need to Produce

1. Multiple Paver Thickness Options

PRO supports 50 mm, 60 mm, 80 mm, and 100 mm paver thicknesses for different paving requirements. The mould structure can also be customized according to the required block dimensions, surface pattern, and production specifications.

2. Customized Interlocking Patterns

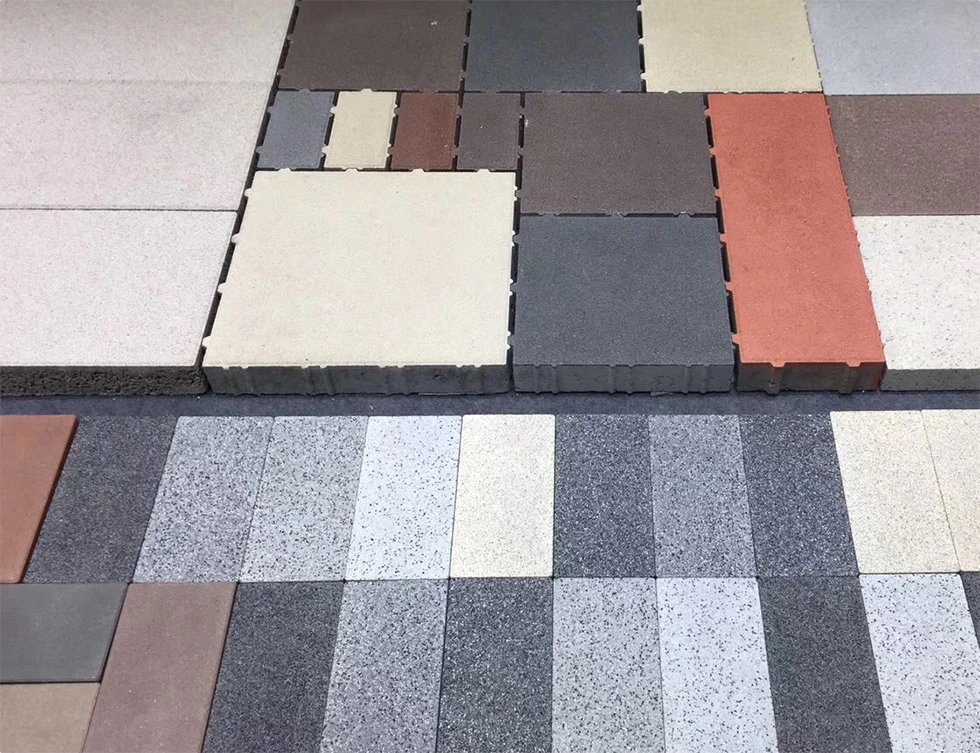

Different projects require different paver shapes and surface designs. PRO can develop customized mould cavities according to customer drawings or finished block samples, allowing manufacturers to produce interlocking pavers, permeable paving blocks, grass pavers, tactile paving blocks, and other concrete products.

3. Designed for MASA and HESS Machines

The Interlocking concrete paver mould is engineered for MASA and HESS block making machines and can also be adapted to many other concrete block production systems. Machine model, installation dimensions, mould height, and other technical parameters can be confirmed before manufacturing.

Where PRO Paver Moulds Are Used

1. Urban Roads and Municipal Projects

PRO Interlocking Concrete Paver Moulds can be used to produce paving blocks for sidewalks, pedestrian streets, bicycle lanes, municipal squares, bus stations, and tactile paving systems. Different surface patterns can be selected to meet functional and visual requirements.

2. Parks and Landscape Areas

Concrete pavers produced with PRO moulds are suitable for park paths, scenic areas, courtyards, green spaces, flower beds, recreational areas, and landscape walkways. Customized patterns allow paving products to integrate with different architectural styles.

3. Parking Areas and Industrial Sites

For parking lots, factory roads, industrial parks, office forecourts, and commercial areas, the mould can produce paving blocks with different thicknesses and structural configurations according to expected traffic and application requirements.

4. Permeable and Ecological Pavement

Customized mould structures can be used for permeable pavers, grass pavers, rainwater-management paving, riverbank protection blocks, and ecological landscape products where drainage and environmental performance are important.

What Makes the Mould Last Longer?

1. High-Hardness Mold Inserts

The mould inserts reach HRC 60–65, while the tamper head hardness reaches HRC 60–62. The high hardness helps resist wear caused by repeated contact with concrete aggregates and continuous mechanical vibration.

2. Vacuum Carburizing Treatment

PRO uses vacuum carburizing technology with a carburizing layer of approximately 1.2–1.35 mm. The treatment improves surface hardness and wear resistance while maintaining the mechanical strength of the mould structure.

3. Integral Frame Heat Treatment

The integral frame undergoes controlled heat treatment to improve structural stability. This helps reduce deformation during repeated production and contributes to consistent paver dimensions over extended operating periods.

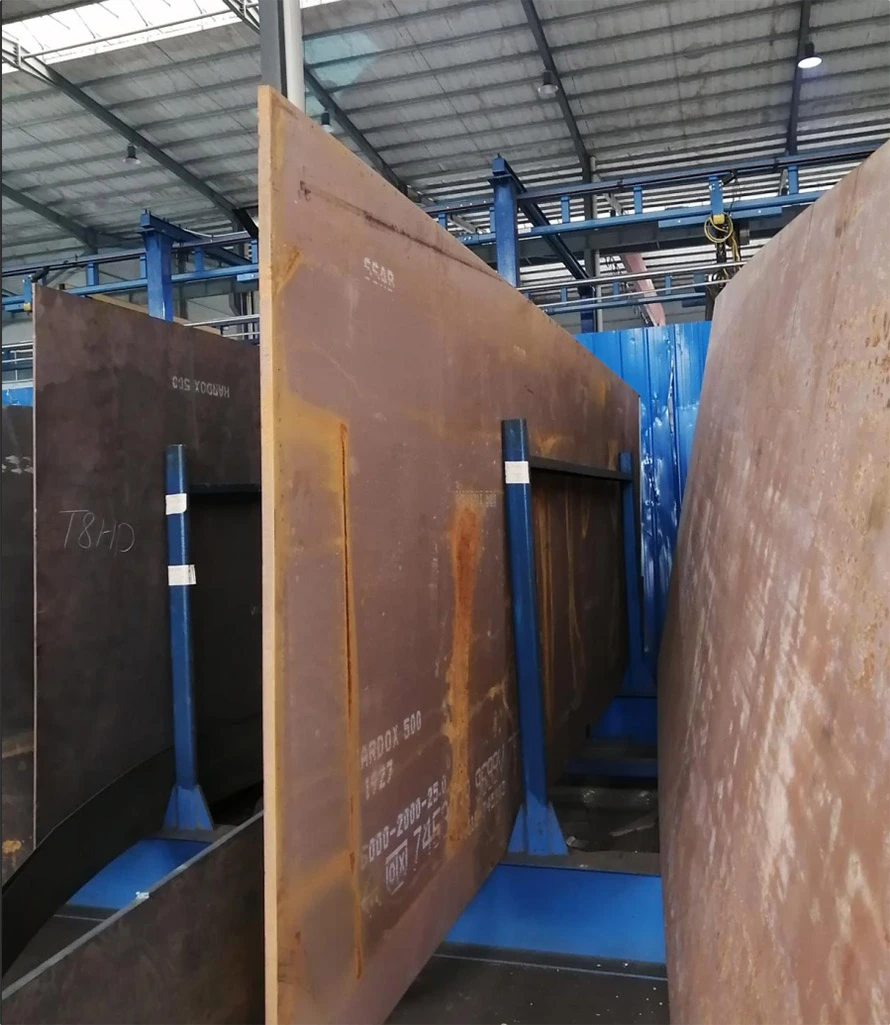

4. High-Grade Alloy Steel

Special alloy materials sourced from high-quality steel suppliers are used for critical mould components. The material selection is intended to provide a balance between hardness, toughness, wear resistance, and service life.

Maintenance Without Replacing the Complete Mould

1. Replaceable Base Plate Bolts

The mould base plate uses replaceable bolts, allowing worn fastening components to be changed individually. This simplifies routine maintenance and reduces unnecessary replacement costs.

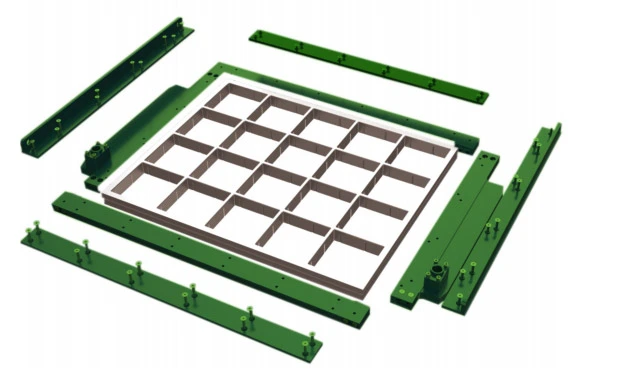

2. Detachable Screw-Locking Structure

The freely assembleable screw-locking design allows key mould components to be disassembled when maintenance is required. Compared with a permanently welded structure, the detachable design provides greater flexibility for component replacement and servicing.

3. Replaceable Critical Components

When individual mould components reach their service limit, the corresponding parts can be replaced instead of discarding the complete mould. This approach can reduce downtime and improve the economic efficiency of long-term paver production.

Improving Finished Paver Quality

1. Smooth Inner Cavity

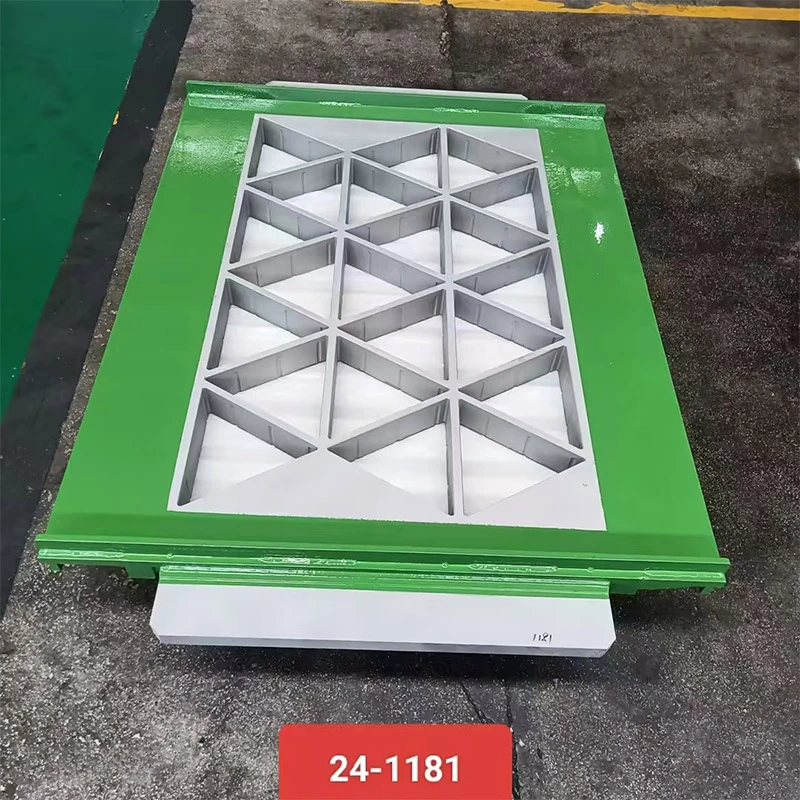

The mould cavity is precision processed to provide a smooth forming surface. This supports easier demolding and helps maintain clean edges and consistent surfaces on finished concrete pavers.

2. Heating-Assisted Upper Mold Plate

The upper mould base plate can be equipped with a heating device to reduce material viscosity during forming. This can improve surface quality and contribute to more consistent finished pavers.

3. Flexible Shoes with Damping Rubber

The flexible shoe design incorporates damping rubber to improve the interaction between the mould and concrete material during compaction. This helps promote more homogeneous stone distribution and improve the surface finish of the finished paving blocks.

Quality Control Before Delivery

PRO operates its own quality testing laboratory to inspect critical mould parameters during production. Hardness, carburizing depth, dimensions, component structure, and other important characteristics are checked according to production requirements.

The manufacturing process also emphasizes mechanized production and standardized procedures to reduce human errors. This allows PRO to maintain more consistent mould quality between different production batches.

Technical Specifications

Questions Buyers Often Ask

1. How long can the PRO paver mould last?

The mould is engineered for a service life of up to 100,000 production cycles. Actual service life depends on concrete mix, aggregate characteristics, machine operation, production frequency, and maintenance conditions.

2. Can PRO make a mould based on our existing paver design?

Yes. PRO can customize the mould according to customer drawings, samples, required block dimensions, surface patterns, and machine specifications.

3. Can the mould be used on machines other than MASA and HESS?

Yes. Although the mould is designed for MASA and HESS machines, PRO can develop mould structures according to other block making machine models after confirming the machine's technical parameters.

4. Is the mould completely welded?

Not necessarily. PRO provides a detachable screw-locking design, while welding structures can also be selected according to customer requirements. The screw-locking structure is particularly suitable for customers who prioritize easier maintenance and component replacement.

5. What is the main benefit of the 100,000-cycle design?

A longer mould life can reduce the frequency of mould replacement, production interruptions, and maintenance expenses. For high-volume block manufacturers, this can contribute to lower mould cost per production cycle.
