Reinforcement Connectors for Concrete Precast Components

PRO is a professional manufacturer specializing in the R&D, production, and sales of Reinforcement Connectors for Concrete Precast Components, possessing a standardized factory equipped with advanced production and testing equipment. From raw material selection to product delivery, the core objective is to solve the pain points of precast building rebar connections, providing safe, efficient, and durable connection solutions for precast projects worldwide, and establishing itself as a benchmark brand in the field of precast component rebar connections.

Product Overview

PRO Reinforcement Connectors for Concrete Precast Components primarily includes ductile iron and steel grouting sleeves, specifically designed for connecting rebar in precast buildings. Utilizing patented technology to optimize the internal structure, these products offer superior performance and cost-effectiveness compared to similar foreign products. Under the same load conditions, the sleeves are lighter and the joints are more compact, effectively reducing stress concentration and improving seismic performance. As a professional supplier rooted in China, we strictly control product quality, ensuring that every product meets international standards and is suitable for various complex precast construction scenarios.

Core Product Features

1. Patented Structural Design: Reinforcement Connectors for Concrete Precast Components employ a patented spiral rib structure design. The spiral ribs are scientifically optimized to achieve uniform load distribution, resulting in excellent pull-out resistance after grout curing. The patented inner wall protrusions further enhance the mechanical interlocking with the grouting material, improving the overall stability of the connection.

2. Reliable Connection Performance: The joint strength reaches or even exceeds the strength of the parent material of the reinforcing steel. In testing, the failure mode was steel fracture rather than sleeve damage, fully meeting the requirements of Class I joints and providing a solid guarantee for the structural safety of the project.

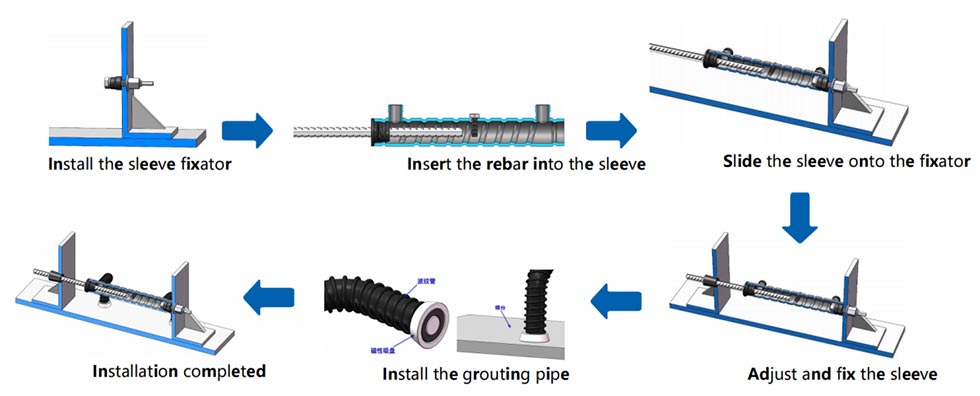

3. Convenient and Efficient Construction: Steel reinforcement connection is achieved through the injection of high-strength, non-shrink grout. The construction process is simple and easy to operate, perfectly adapting to the assembly characteristics of precast buildings, effectively improving construction efficiency and reducing construction costs.

4. Wide Applicability: Compatible with HRB400 and HRB500 grade steel bars with diameters of 12mm-40mm, covering most steel bar specifications in precast buildings, and meeting the connection needs of different precast components.

5. Controllable and Traceable Quality: The inner wall of the Reinforcement Connectors for Concrete Precast Components features a ribbed or grooved design to ensure full grouting without gaps, avoiding quality risks caused by insufficient grouting. The entire production process is supervised by professional technicians, and each batch of products undergoes strict quality inspection to ensure stable and reliable quality.

Product Classification and Application Scenarios

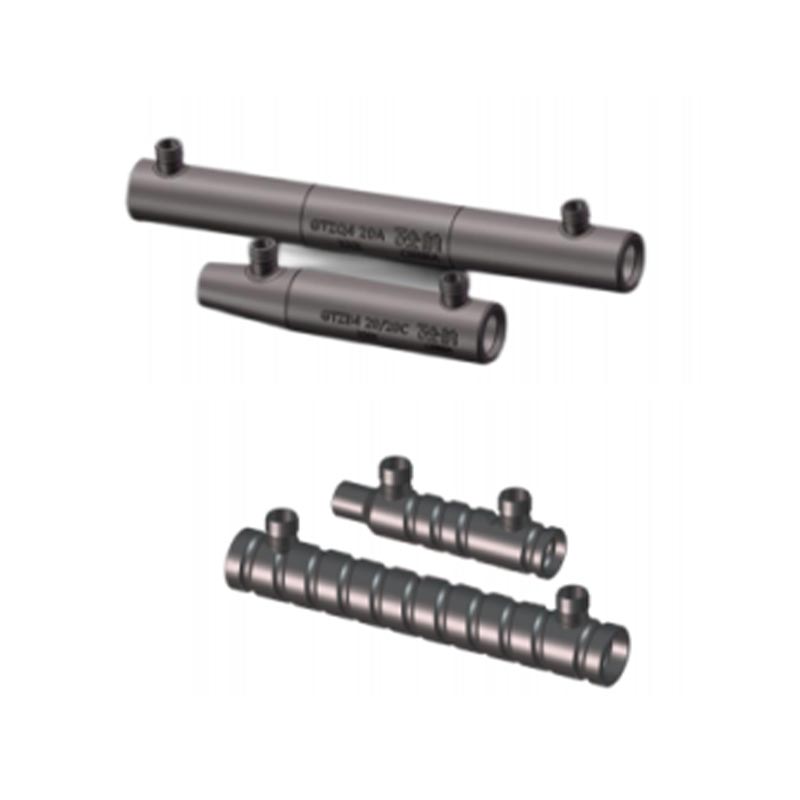

PRO Reinforcement Connectors for Concrete Precast Components are categorized by material into ductile iron grouting sleeves and steel grouting sleeves. Each type has specific applicable scenarios to meet different project needs:

1. Ductile Iron Grouting Sleeves

Applicable Scenarios: Suitable for cost-sensitive, large-scale production, and relatively standardized precast building projects. High cost-effectiveness, suitable for large-scale application in general precast projects.

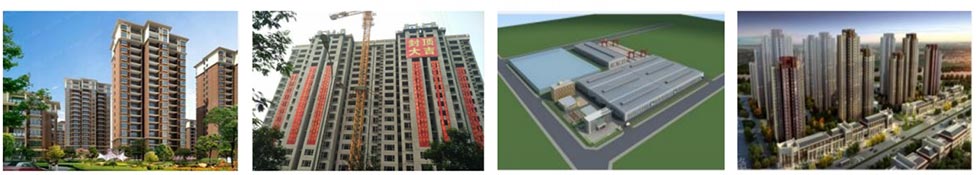

Typical Uses: Vertical and horizontal reinforcement connections for precast shear walls, frame columns, and beams; node connections for precast components such as stairs, balconies, and exterior wall panels; reinforcement connections for municipal integrated pipe corridors and precast subway segments.

2. Steel Grouting Sleeves

Applicable Scenarios: Suitable for critical structural systems and high-rise buildings with extremely high requirements for precision, ductility, and durability. Superior performance indicators, suitable for high-standard, high-risk precast projects.

Typical Applications: Key load-bearing nodes in super high-rise and large-span precast frame structures; connections of precast components in high-intensity earthquake zones; thin-walled precast components (such as wall panels) with strict requirements for concrete cover thickness; connections of precast segments in heavy-load and dynamic-load structures such as bridges and rail transit.

Product Details and Quality Standards

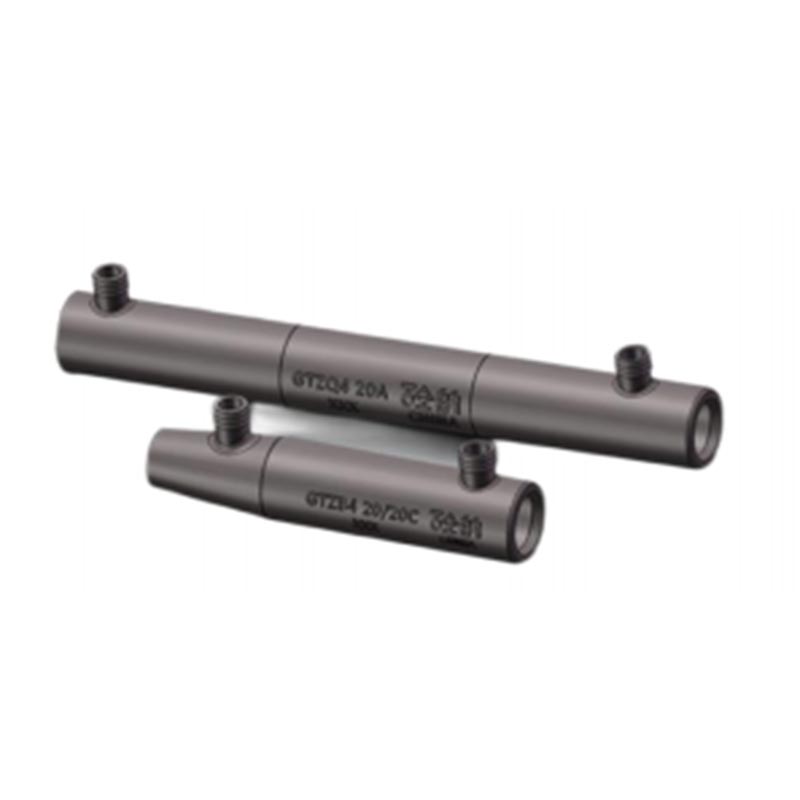

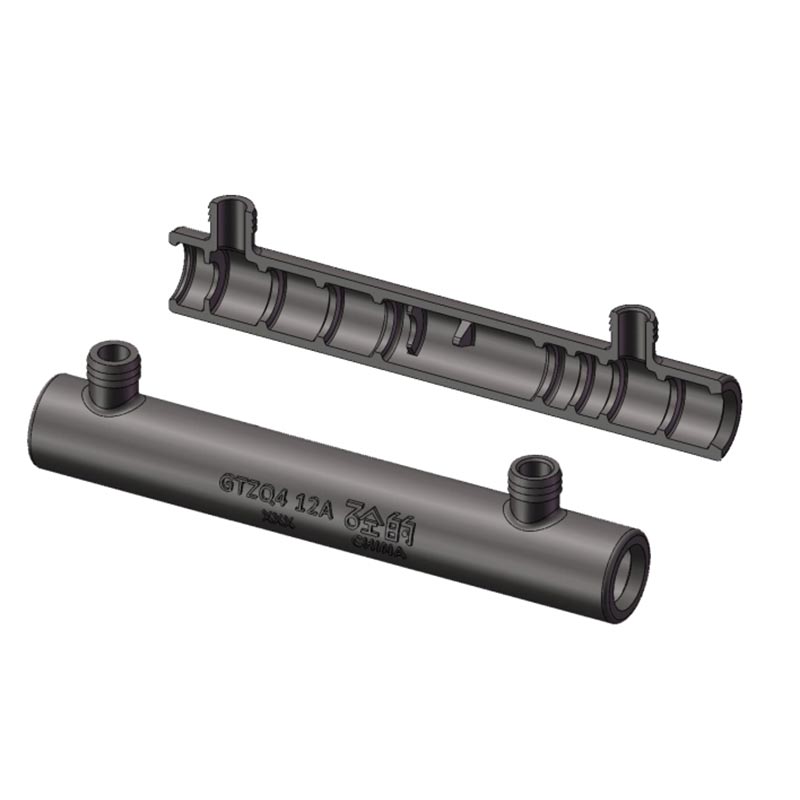

1. Ductile Iron Grouting Sleeve

- Material: Cast from high-strength ductile iron such as QT600-3, with excellent toughness and load-bearing capacity.

- Process: Precision casting, with annular grooves, spiral ribs, or dotted protrusions on the inner wall to enhance mechanical interlocking with the grouting material.

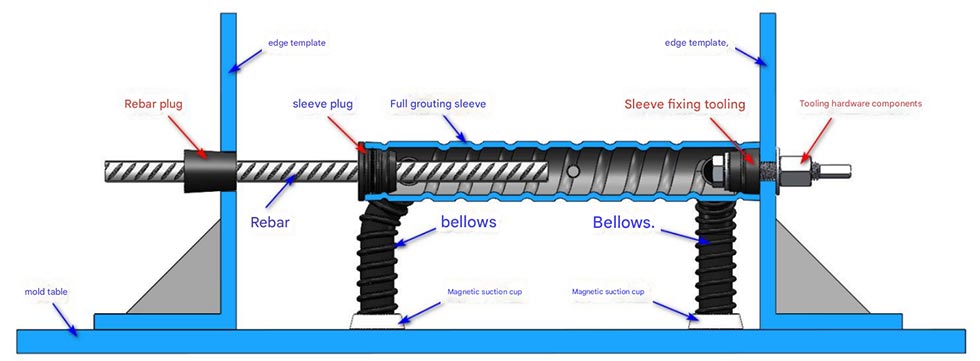

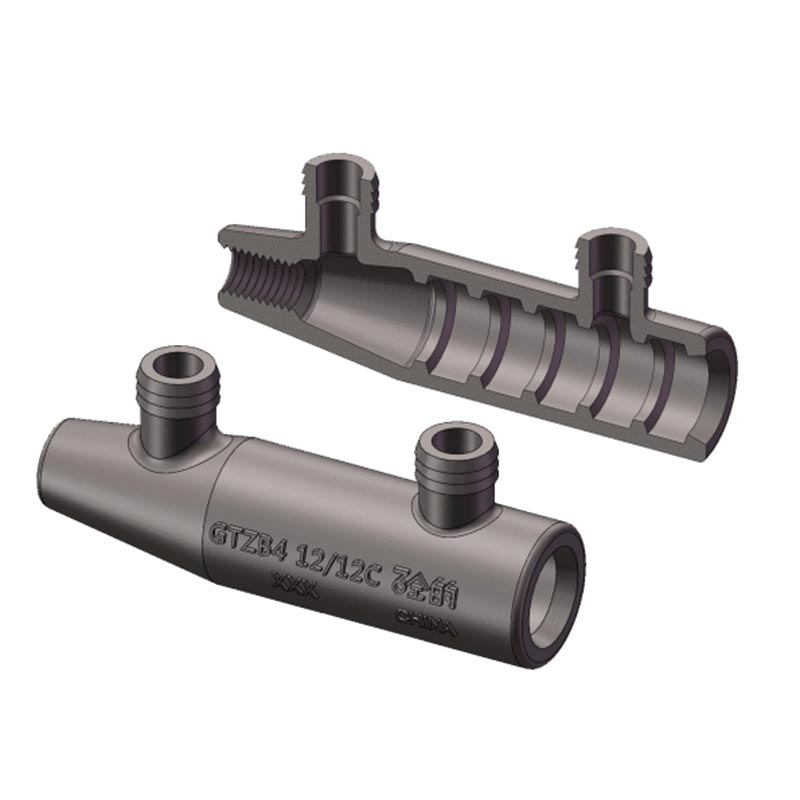

- Type: Divided into fully grouted sleeves and semi-grouted sleeves. Fully grouted sleeves have grouted connections at both ends, suitable for bidirectional rebar butt joints; semi-grouted sleeves have a threaded connection at one end (screwed onto the rebar of the precast component), and a grouted connection at the other end.

- Standards: Complies with "Grouting Sleeves for Reinforcing Bar Connections" (JG/T 398-2019) and "Ductile Iron Castings" (GB/T 1348) (Chinese National Standards), ensuring product compliance and authority.

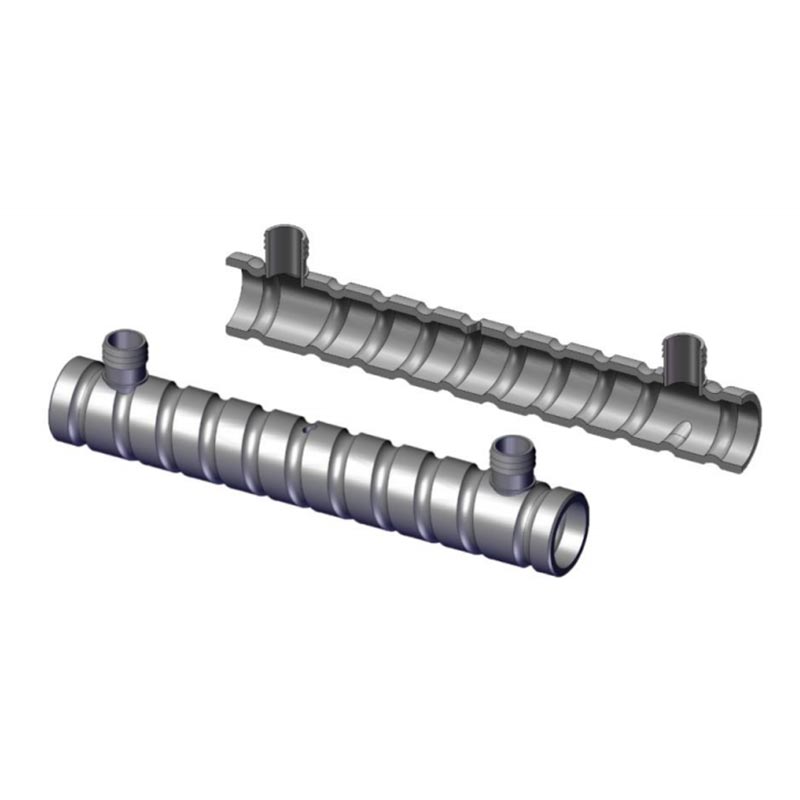

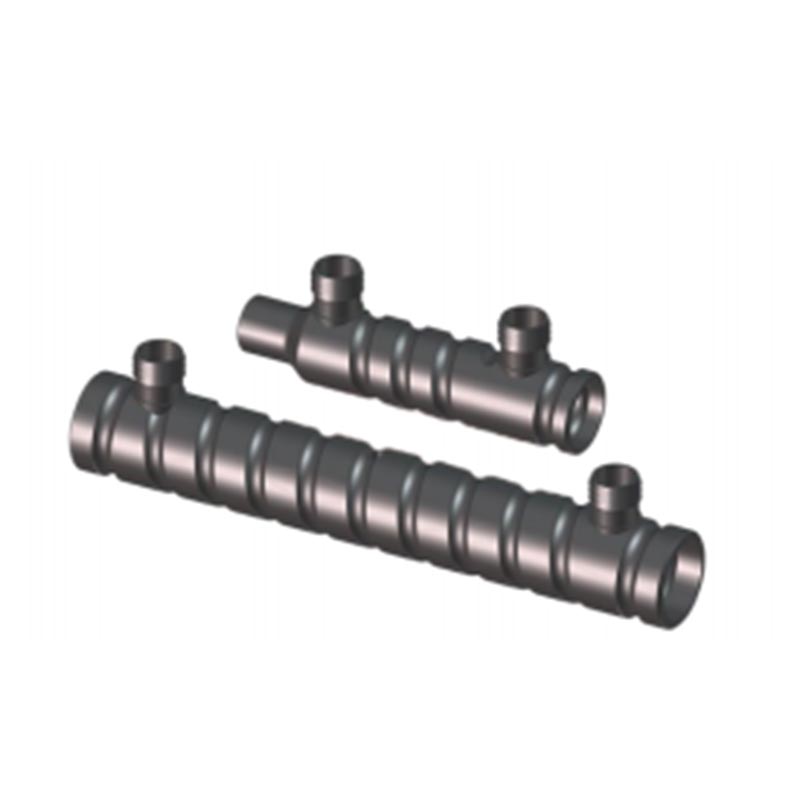

2. Steel Grouting Sleeves

- Material: Manufactured using high-quality carbon structural steel, low-alloy high-strength steel, or seamless steel pipe, offering high strength and good ductility.

- Process: Machining or hot extrusion forming, ensuring high dimensional accuracy and uniform internal ribs, guaranteeing consistent product performance.

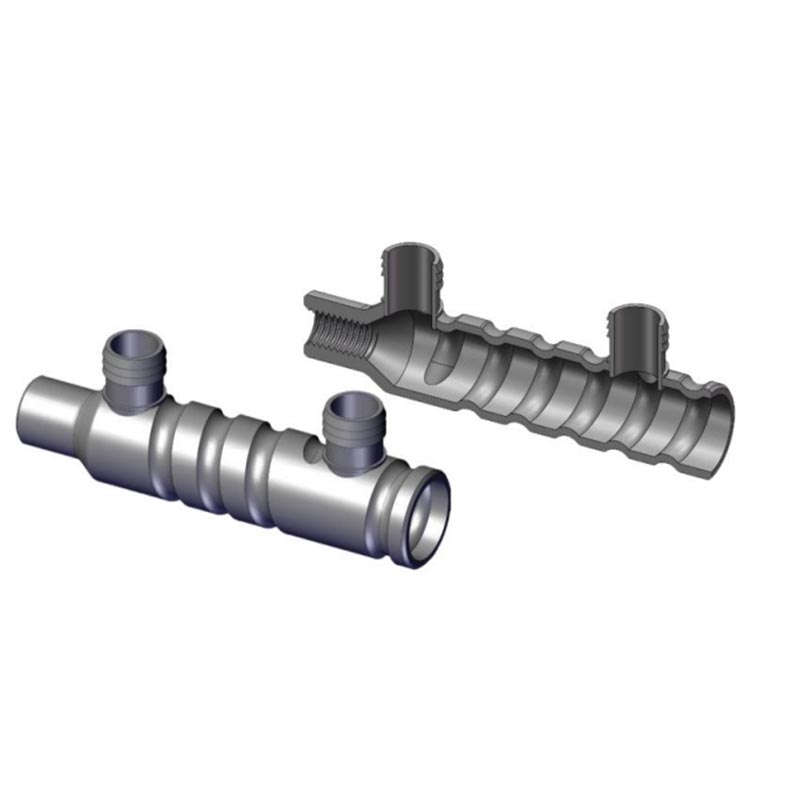

- Types: Also available in fully grouted and semi-grouted types. Semi-grouted sleeves have higher precision machining at the threaded end, ensuring reliable threaded connections.

- Standards: Complies with "Grouting Sleeves for Reinforcing Bar Connections" (JG/T 398-2019) and "High-Quality Carbon Structural Steel" (GB/T 699), meeting advanced international quality standards and adapting to global project needs.

PRO Reinforcement Connectors for Concrete Precast Components, with their patented design, reliable performance, wide applicability, and rigorous quality control, are the ideal choice for rebar connections in precast buildings. As a professional manufacturer and supplier rooted in China, we are committed to providing high-quality products and professional services for precast building projects worldwide, helping to improve the safety, efficiency, and durability of precast structures. We look forward to working with global customers to create a bright future for the precast building industry.
