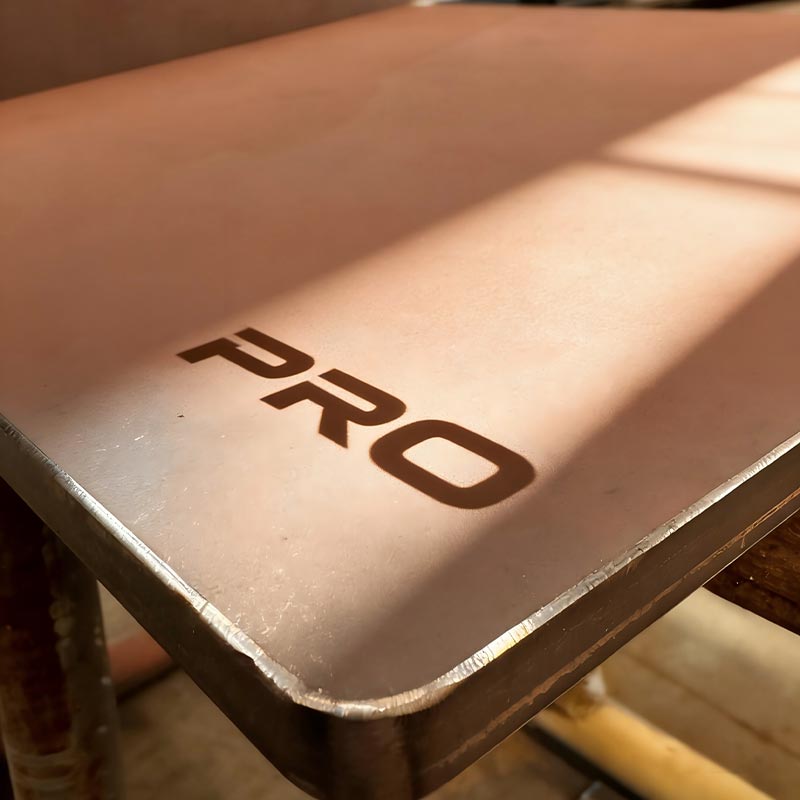

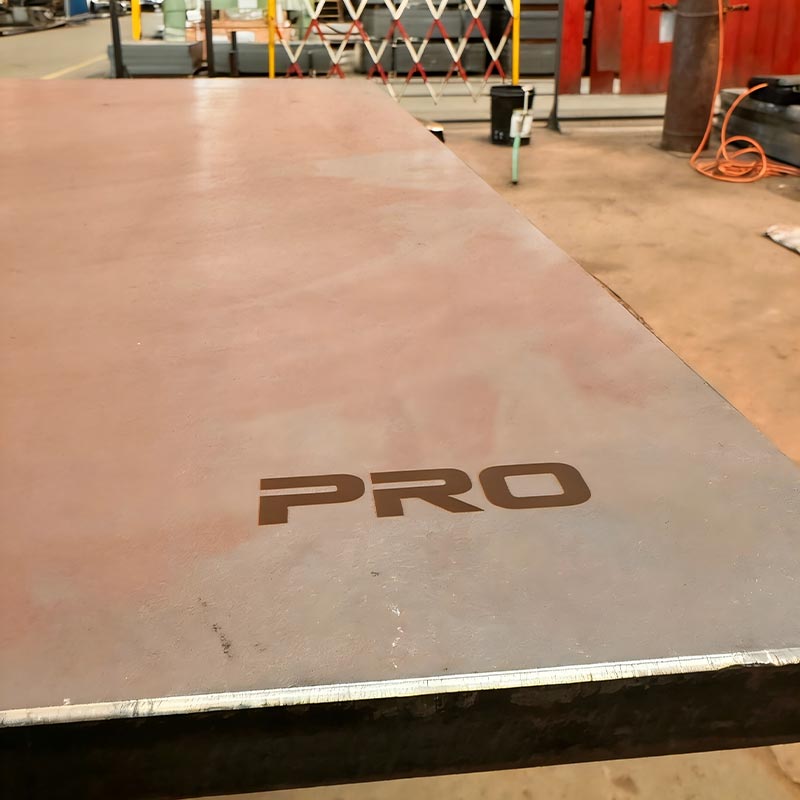

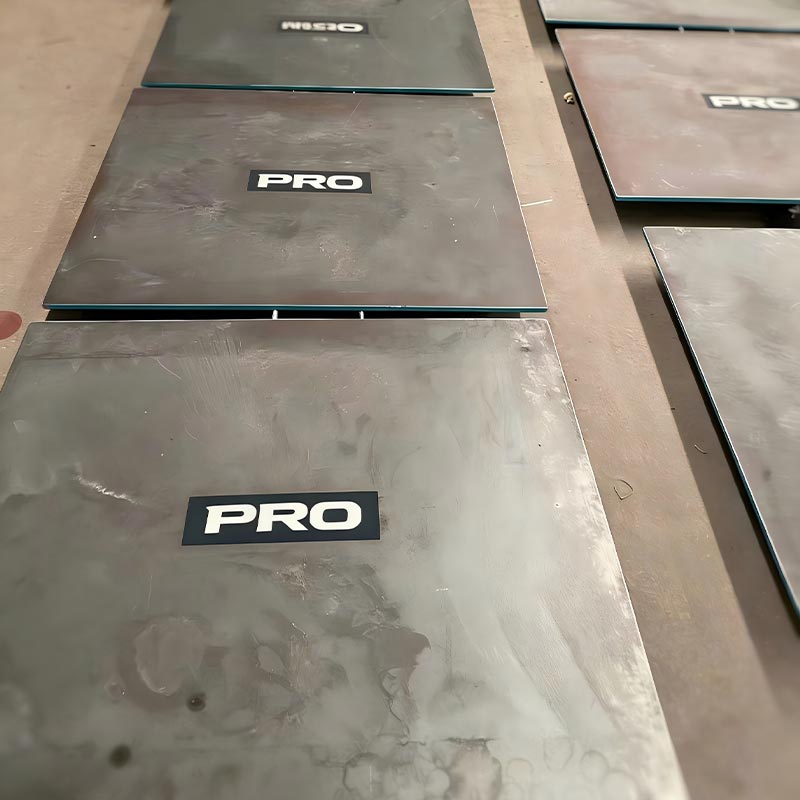

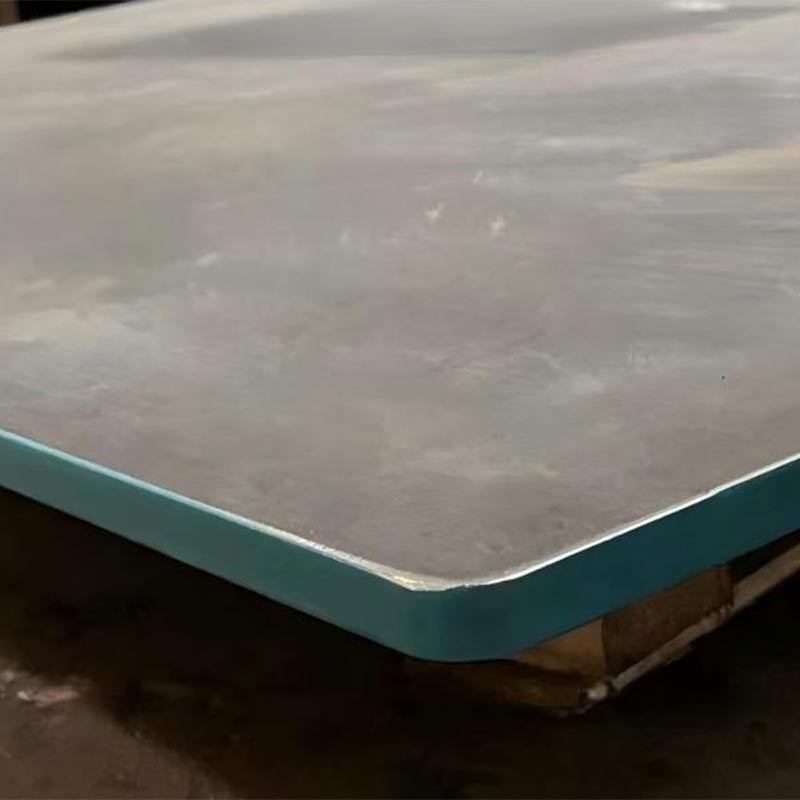

Steel Block Brick Pallet

PRO Steel Block Brick Pallet uses high-standard heavy-duty raw steel from CITIC Group. Through alloying treatment and a new rolling process, a stable iron oxide anti-rust layer is formed, doubly enhancing rust resistance and adapting to harsh working conditions. The product adheres to high precision standards: flatness, length and width dimensional tolerance ≤1mm, diagonal tolerance ≤2mm, chamfer radius R10±2, precisely adapting to equipment and avoiding production deviations.

Product Parameter (Specification)

Product Features

1. Molding Stage

Supports the mold and wet concrete, withstands high-frequency vibration and high-pressure molding, ensuring the density and precision of the blocks, improving block strength, and reducing honeycomb and pitting defects.

2. Transfer Process

The flat and rigid surface of the Steel Block Brick Pallet ensures even stress on wet brick blanks, preventing damage during transfer and keeping the breakage rate below 1%, thus reducing losses for manufacturers.

3. Curing Process

Suitable for steam/natural curing, it withstands high temperatures of 60-80℃ and humid, alkaline environments, preventing warping and rusting. It is wear-resistant, impact-resistant, and has a lifespan far exceeding traditional pallets, reducing long-term costs.

4. Warehousing and Palletizing

The standardized specifications of the Steel Block Brick Pallet are compatible with fully automatic palletizers, allowing for multi-layer stacking, improving warehousing and logistics efficiency and space utilization, and aligning with large-scale production.

Wide Range of Applications

1. Fully Automated Concrete Block Production Line: Suitable for the production of various conventional blocks such as standard bricks, hollow bricks, and paving bricks;

2. High-Strength/High-Density Block Production: Suitable for the manufacture of high-standard blocks such as load-bearing bricks and imitation stone bricks;

3. Large-Scale Production: Suitable for production lines with a daily output of ≥50,000 standard bricks, requiring high efficiency and stability;

4. Harsh Working Conditions: Can operate stably in environments with high-temperature steam, high humidity, high alkali, and frequent vibration and impact.

Production Details

1. Ironmaking: High-standard ironmaking ensures steel purity and performance;

2. Steel Rolling: Innovative processes form a stable iron oxide anti-rust layer;

3. Steel Plate Inspection: Inspect dimensions and flatness to remove substandard raw materials;

4. Steel Plate Laser Cutting: High-precision cutting ensures accurate dimensions;

5. Post-Cutting Dimensional Re-inspection: First piece of each batch is inspected to avoid batch anomalies;

6. Pallet Lifting and Transfer: Electromagnetic chucks + nylon straps for lifting to prevent scratches;

7. Pallet Leveling and Straightening: Specialized equipment for straightening to improve flatness;

8. Post-Straightening Thickness and Flatness Inspection: Secondary inspection to ensure compliance with tolerance standards;

9. Pallet Edge Grinding: Grinding sharp edges to 0.3-0.5mm for safety;

10. Rust-Preventive Oil Spraying + Inner Packaging: Special rust-preventive oil + transparent film to prevent damage during transportation;

11. Finished Product Packaging and Palletizing: Wooden pallets + steel strap packaging, single package ≤ 3.5 tons, convenient for forklift operation;

12. Loading and Shipping: Standardized operations ensure products arrive intact.

Brand Value and Market Positioning

As a top-tier Steel Block Brick Pallet for brick making machines in China, PRO adheres to high standards of production and quality control, striving for excellence in every aspect. Whether for small and medium-sized enterprises or large automated production bases, it provides stable and efficient support, making it a reliable choice for the global brick manufacturing industry to optimize efficiency and reduce costs.
