Concrete Curb Forming Mould

Designed for MASA and HESS block making machines as well as different cement brick machines and vibrating tables, the Concrete curb forming mould combines special alloy steel, Hardox steel, CNC cutting, and advanced heat treatment. It is engineered for up to 100,000 production cycles, helping customers maintain stable dimensions and reduce mould replacement frequency during continuous production.

Choosing the Right Mould for Different Curb Designs

1. Straight and Standard Curbs

Straight curb moulds are suitable for urban roads, sidewalks, parking areas, residential communities, and industrial parks. The precision-forming structure helps produce curbs with straight edges, consistent dimensions, and clean joints for efficient installation.

2. Curved and Chamfered Curbs

For landscaping, road corners, traffic islands, and architectural projects, PRO can manufacture curved and chamfered moulds according to customer drawings. Customized geometry allows manufacturers to produce concrete components that match different road layouts and landscape designs.

3. Drainage Channel Curbs

PRO supports mould designs for water-channel curbs and related precast concrete drainage components. The mould dimensions and groove structure can be customized according to the required drainage configuration and installation conditions.

4. Flat Stones and Special Concrete Components

Beyond conventional kerbstones, the mould can be designed for flat stones, upright curbs, edge stones, and other precast concrete products. Customers can provide drawings or samples for a customized forming solution.

Engineering Behind a Longer Mould Life

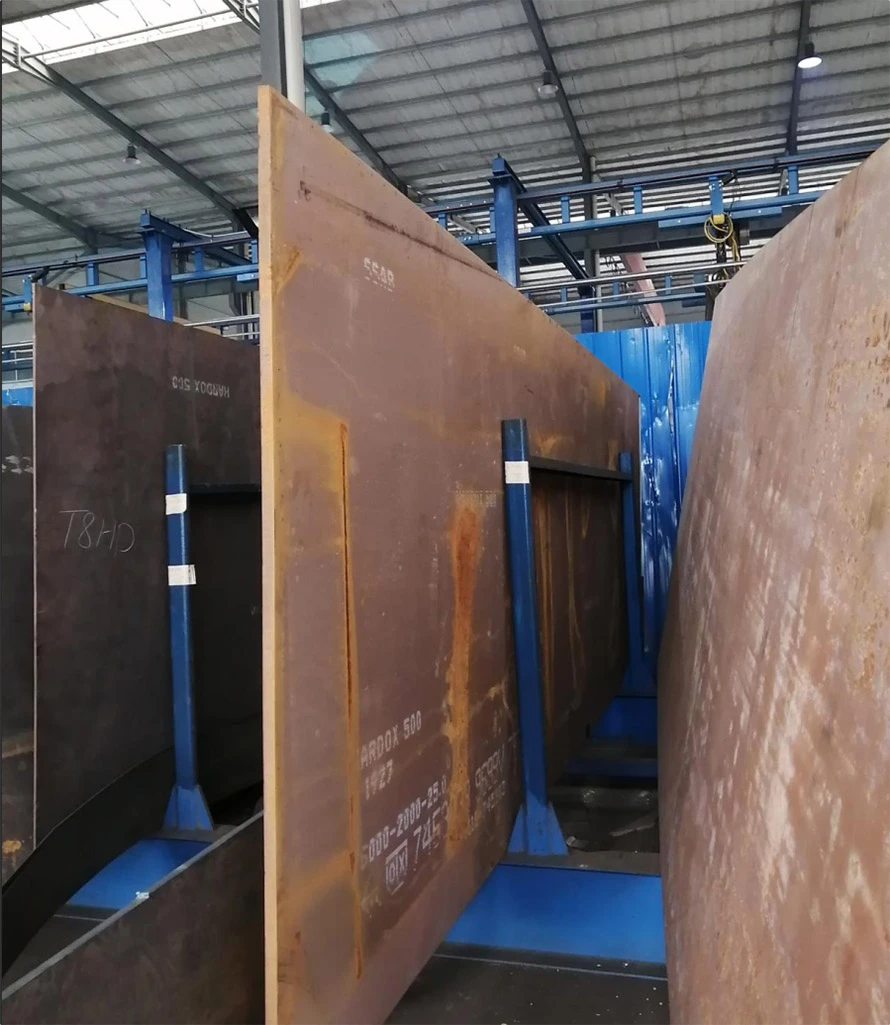

1. Special Alloy Steel Instead of Standard Q235 Steel

PRO uses special alloy materials rather than standard Q235 steel for critical mould components. The higher-strength material provides improved toughness and resistance to mechanical impact, making the Concrete Curb Forming Mould suitable for repeated vibration and high-volume production.

2. Vacuum Carbonitriding for Surface Hardness

The mould adopts advanced vacuum carbonitriding heat treatment, with surface hardness reaching up to 65 HRC. The treatment improves resistance to wear and repeated friction, helping maintain the mould cavity and forming edges during continuous production.

3. Integral Frame Heat Treatment

The mould frame undergoes integral heat treatment to improve structural stability and resistance to deformation. This helps the mould maintain its original geometry under repeated vibration, pressure, and production cycles.

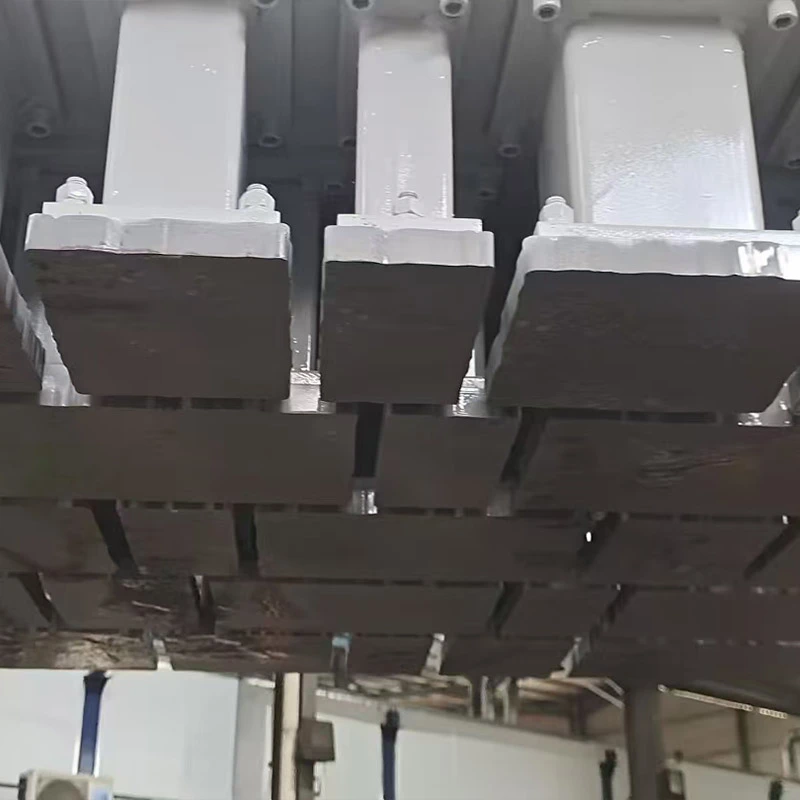

4. Hardox Steel Tamper Head

The tamper head is manufactured from Hardox steel, providing high wear resistance and mechanical strength. The robust tamper head structure is designed to withstand repeated compaction forces and contribute to consistent concrete curb forming.

Precision Matters in Finished Curbs

1. CNC Cutting for Accurate Dimensions

PRO uses CNC cutting technology to control critical mould dimensions and shapes. Accurate processing helps reduce dimensional deviations and supports consistent length, width, height, and profile across different production batches.

2. Clean Forming Edges

The precisely processed mould cavity helps create straight and well-defined edges on finished curbs. Consistent geometry makes the concrete elements easier to transport, position, align, and install at the construction site.

3. Smooth Demolding

The inner cavity is designed to support smooth demolding and reduce adhesion between the concrete material and mould surface. Easier release can help reduce edge damage, surface defects, material waste, and unnecessary production interruptions.

Designed for Different Production Environments

1. Municipal Roads

PRO Concrete Curb Forming Moulds can produce curbs for urban arterial roads, secondary roads, sidewalks, non-motorized lanes, and road edges. These concrete elements help define carriageways, separate pedestrian areas, and protect pavement edges.

2. Highway Engineering

Concrete curbs are commonly used along expressways, national highways, provincial highways, and service areas. PRO moulds can be customized for different curb dimensions and structural requirements used in highway projects.

3. Residential Communities and Industrial Parks

The mould is suitable for producing curbs used in residential roads, school areas, factory zones, industrial parks, and internal access roads. Standardized mould production helps contractors and precast manufacturers maintain consistent curb dimensions across larger projects.

4. Landscape and Green Areas

Curbs produced with PRO moulds can be used around parks, squares, green belts, flower beds, courtyards, and other landscaped areas. Customized curved, chamfered, or decorative profiles allow the finished concrete components to match different landscape layouts.

5. Parking and Traffic Management

Concrete curbs can be used for parking space separation, driveway edges, traffic guidance, and pavement protection in commercial complexes, residential parking lots, and public parking areas.

6. Bridges, Tunnels, and Port Facilities

For projects with specific terrain, loading, or environmental requirements, PRO can customize mould dimensions and structures according to engineering drawings. This provides greater flexibility for special precast concrete applications.

Production Efficiency Starts with the Mould Structure

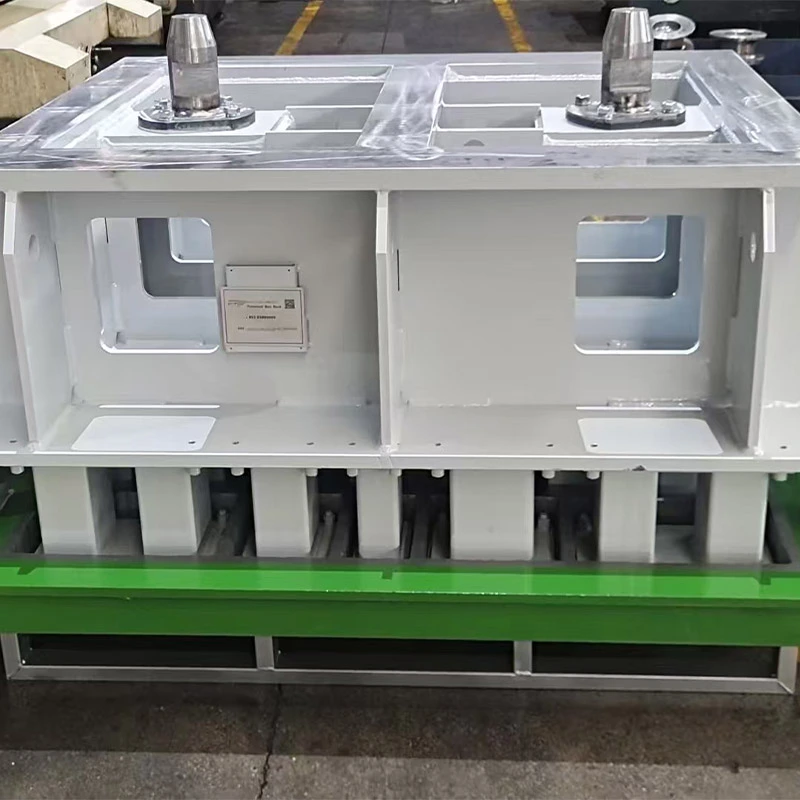

1. Strong Frame for Continuous Production

The reinforced mould frame is designed to withstand vibration and repeated mechanical loads. Combined with heat-treated steel components, the structure supports stable operation in high-frequency precast concrete production.

2. Freely Assembleable Screw-Locking Design

PRO provides a freely assembleable screw-locking design that allows mould components to be assembled and disassembled more conveniently. Compared with a permanently fixed structure, this design simplifies maintenance and allows worn components to be replaced more efficiently.

3. Quick Style Replacement

The modular structure allows manufacturers to change mould configurations according to production requirements. This is particularly useful for factories producing several types of curbs, flat stones, drainage components, or customized concrete products.

4. Reduced Product Breakage

A smooth mould cavity and controlled forming geometry support easier demolding and help reduce damage to concrete edges and corners. This contributes to a higher finished-product qualification rate and reduces material waste during mass production.

Specifications at a Glance

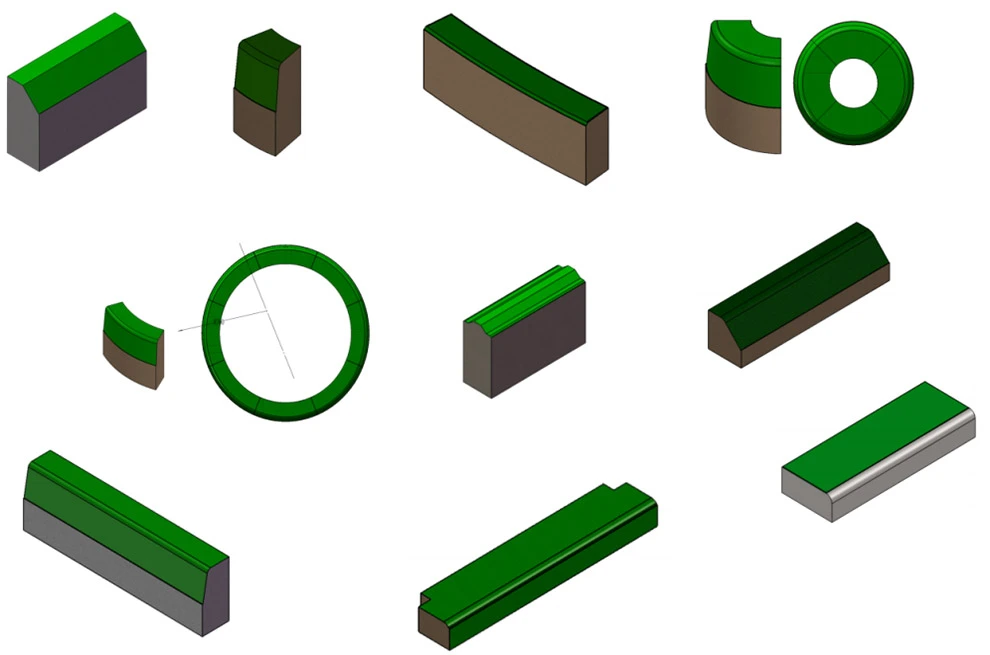

What Can PRO Curb Moulds Produce?

1. Straight Curbstones — Suitable for standard road edges, sidewalks, parking areas, residential roads, and industrial zones.

2. Curved Curbstones — Designed for road bends, traffic islands, parks, landscaping projects, and other applications requiring curved layouts.

3. Chamfered Curbs — Suitable for projects requiring modified edges or specific installation profiles, with dimensions customized according to drawings.

4. Water Channel Curbs — Designed for applications where curb structures need to incorporate drainage channels or water-flow functions.

5. Flat Stones and Edge Components — PRO can also develop moulds for flat stones, upright curbs, roadside stones, and other precast concrete elements according to customer requirements.

Buyer FAQ

1. What material does PRO use for concrete curb moulds?

PRO uses special alloy steel for critical mould components and Hardox steel for the tamper head. These materials provide higher strength, toughness, and wear resistance than standard mould steel options.

2. How hard is the PRO curb mould?

The mould surface hardness can reach up to 65 HRC. Advanced vacuum carbonitriding heat treatment is used to improve surface wear resistance, while the carburizing layer is approximately 1.2–1.35 mm.

3. How many cycles can the mould produce?

The PRO Concrete Curb Forming Mould carries a service-life warranty of up to 100,000 cycles. Actual service life depends on concrete mix, aggregate properties, machine settings, production frequency, and maintenance conditions.

4. Can PRO make custom curb moulds?

Yes. PRO supports customized length, width, height, profile, drainage groove, curved shape, chamfer, and other structural requirements based on customer drawings or samples.

5. Can the mould be used with machines other than MASA and HESS?

Yes. PRO moulds can be designed for different cement brick machines, block making machines, and vibrating tables. Customers can provide the machine model and technical dimensions for compatibility confirmation.

6. Can worn components be replaced?

Yes. The freely assembleable screw-locking structure allows key components to be removed and replaced more conveniently, helping reduce maintenance time and avoid replacing the complete mould when only individual components are worn.

PRO Concrete Curb Forming Mould Manufacturer

With more than 20 years of experience in China, PRO specializes in manufacturing curbstone, concrete block, and brick moulds for different production systems. Our Concrete Curb Forming Mould combines special alloy steel, Hardox steel, CNC cutting, vacuum carbonitriding, integral heat treatment, and a detachable screw-locking structure to support long-term production.

From standard straight curbs to curved, chamfered, drainage-channel, and customized concrete components, PRO provides mould solutions based on the customer's product drawings, machine specifications, and production requirements. With competitive pricing, flexible customization, and long mould service life, PRO aims to become a reliable long-term mould partner for concrete product manufacturers worldwide.
