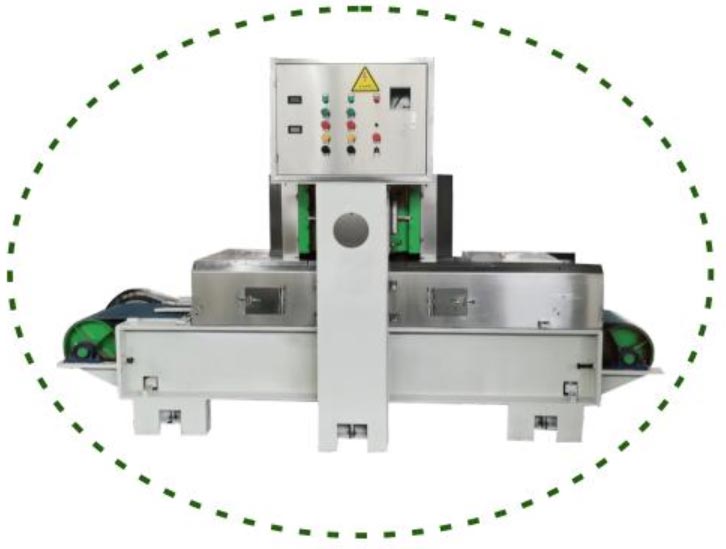

Concrete Curbstone Calibrating Surface Treatment Machine

As a leading manufacturer in this field, PRO boasts over 20 years of practical experience. The Concrete Curbstone Calibrating Surface Treatment Machine combines European standards, Chinese cost advantages, and practical experience. Utilizing high-quality components, it can be customized to meet diverse processing needs.

Product Basic Parameters

The Concrete Curbstone Calibrating Surface Treatment Machine has overall dimensions of 3260mm × 1600mm × 1908mm and a total power of 32.24KW. It is equipped with an anti-slip conveyor belt, supports variable frequency speed control, and electric height adjustment of the grinding disc for continuous and stable operation.

Feature

Key Product Features:

1. High-Precision Thickness Control and Leveling

The Concrete Curbstone Calibrating Surface Treatment Machine achieves a thickness error of ±0.2–0.5mm (±0.1mm for high-end models). High-speed milling with diamond grinding heads eliminates tool marks, resulting in a smooth surface and reduced subsequent processing waste.

2. High-Efficiency Continuous Processing

Mainstream 2/4/6 grinding head configurations allow for seamless integration with automated equipment; variable frequency feed (0.5–3m/min) ensures uniform feeding and consistent quality.

3. Structural Rigidity and Stability

Heavy-duty frame resists deformation and vibration; servo/hydraulic lifting system provides precise positioning; intelligent constant pressure grinding ensures consistent cutting depth.

4. Intelligent and Easy Operation

PLC + touchscreen control allows for one-button parameter setting; automatic thickness detection and compensation reduces manual intervention; equipped with a comprehensive safety and environmental protection system.

5. Durable and Easy to Maintain

The Concrete Curbstone Calibrating Surface Treatment Machine features long-lasting and easily replaceable diamond cutting heads. The core bearings are from imported brands. A water-circulating cooling system reduces dust and temperature, meeting environmental protection requirements.

Application

1. Natural Stone: Leveling and thickening of granite, marble, etc.; preventing chipping of soft stone edges.

2. Artificial Stone: Standardizing the thickness of quartz stone, achieving integrated thickness control and rough polishing of PC imitation stone bricks.

3. Special Slabs: Thickening of ultra-thin stone slabs; batch thickness control of small slabs; some models are compatible with large ceramic slabs.

4. Production Lines: As a core pre-processing step, it can be used as a standalone machine or integrated into automated production lines.

Production Structure and Working Principle

1. Core Definition

Achieving precise thickness control and leveling of stone through high-speed milling with diamond grinding heads, it is an essential piece of equipment for stone finishing.

2. Core Structure and Working Principle

The core structure of the Concrete Curbstone Calibrating Surface Treatment Machine includes a frame, grinding unit, conveyor system, control system, and cooling and dust removal system. During operation, the conveyor belt feeds the material, and the high-speed milling head removes excess material, achieving continuous automated processing.

3. Equipment Classification

The Concrete Curbstone Calibrating Surface Treatment Machine is classified by structure into continuous type and benchtop/gantry type; by the number of grinding heads into 2/4/6 heads; and by function into pure thickness setting machine and thickness setting + rough polishing/sanding integrated machine.
