Cement Concrete Paver Block Shot Blasting Surface Treatment Machine

Manufactured by PRO, the only qualified supplier in this niche market in China, the Cement Concrete Paver Block Shot Blasting Surface Treatment Machine boasts advantages such as stability, high efficiency, energy saving, environmental friendliness, and safe operation. It is CE certified, has an exceptionally long service life, and offers global after-sales service. It seamlessly integrates into precast building material production lines, significantly improving the quality and production efficiency of paving brick products. It is widely applicable to various fields including building materials manufacturing, municipal engineering, road paving, and material renovation.

Product Parameter (Specification)

Core Product Advantages

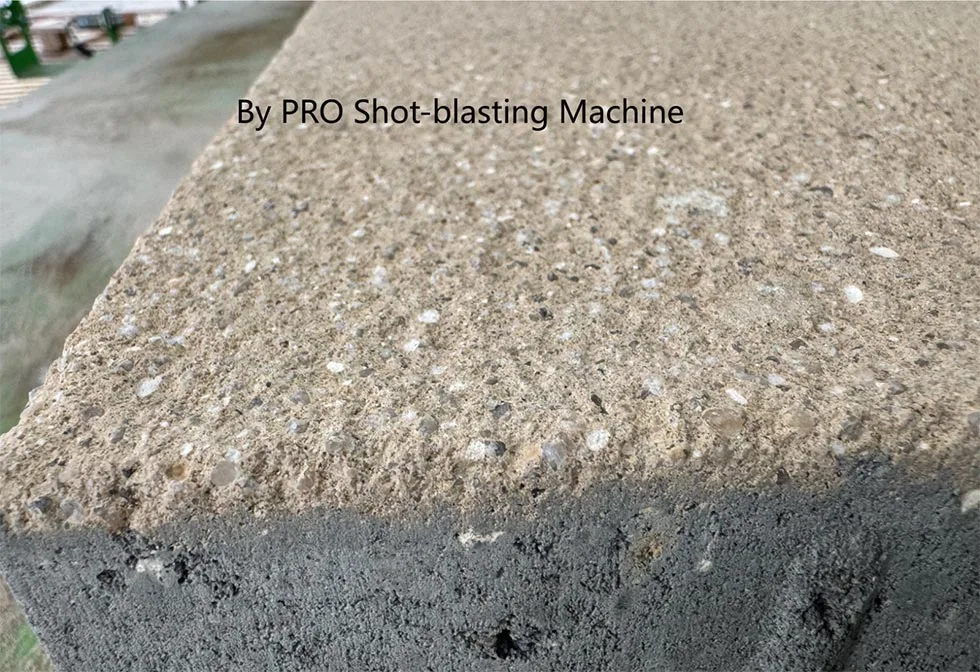

1. Uniform and High-Quality Treatment Results: High-speed centrifugal abrasive projection precisely removes surface impurities, creating a uniform rough texture that enhances aesthetics and adhesion. The treatment depth is controllable, protecting the integrity of the brick.

2. High efficiency, energy saving, and strong adaptability: Automated continuous operation, it can be integrated into precast production lines; frequency conversion control adjusts parameters, and abrasive is automatically recycled, reducing energy consumption and operating costs; adaptable to various brick types.

3. Environmentally friendly, dust-free, and safe to operate: Fully enclosed negative pressure design + pulse dust collector achieves zero dust leakage; one-button operation is convenient, with no high-pressure risks, and safe and stable operation.

4. Robust structure and easy maintenance: The core components of the Cement Concrete Paver Block Shot Blasting Surface Treatment Machine are made of high wear-resistant alloy, and the modular design facilitates the replacement of vulnerable parts. Daily maintenance is simple, and it has strong compatibility.

5. Multifunctional integrated processing: Integrates cleaning, roughening, and defect repair into one machine, suitable for both new brick finishing and old brick renovation, offering multiple uses.

Wide Applications

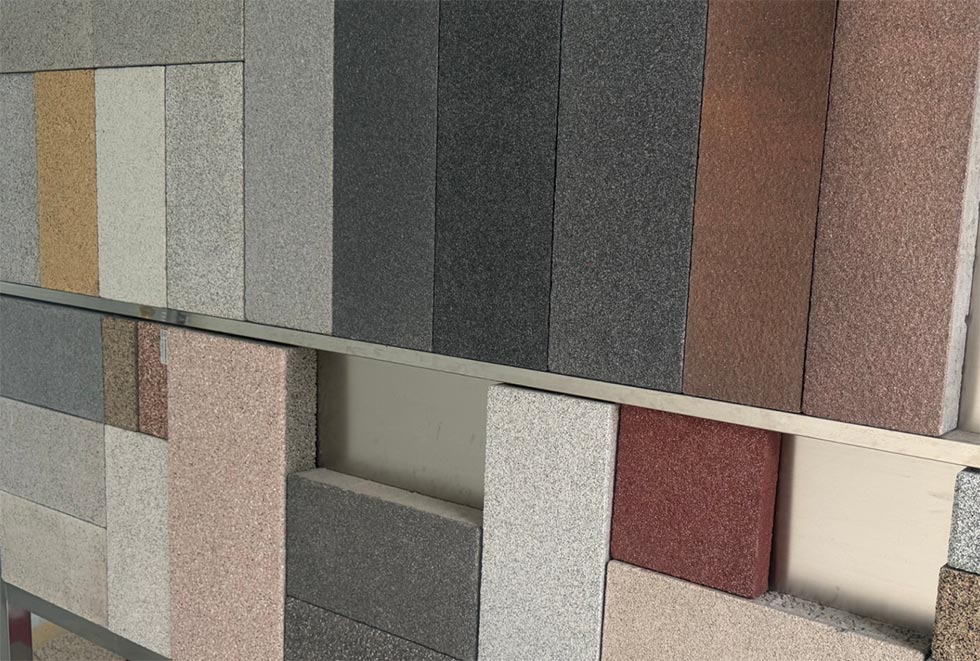

1. Finishing of precast masonry products: Removes impurities from the surface of precast bricks, unifies texture, improves product qualification rate and aesthetics, and is a core piece of equipment for building material manufacturers to improve quality.

2. Road Pavement Substrate Pretreatment: Roughens the brick surface, enhances bonding strength, and improves the quality and service life of road paving.

3. Waste Brick Refurbishment and Recycling: Processes and recycles bricks, removes surface defects, enables reuse, reduces costs, and aligns with environmental protection principles.

4. Special Brick Processing Pretreatment: Optimizes surface roughness, providing a foundation for subsequent spraying, dyeing, and other processes, ensuring coating effectiveness.

Equipment Overview

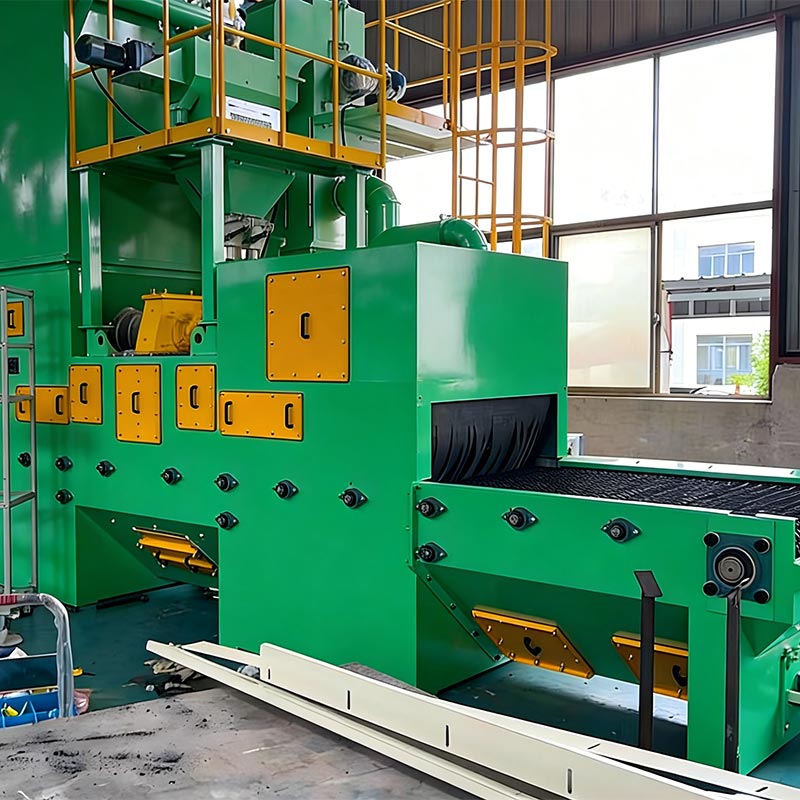

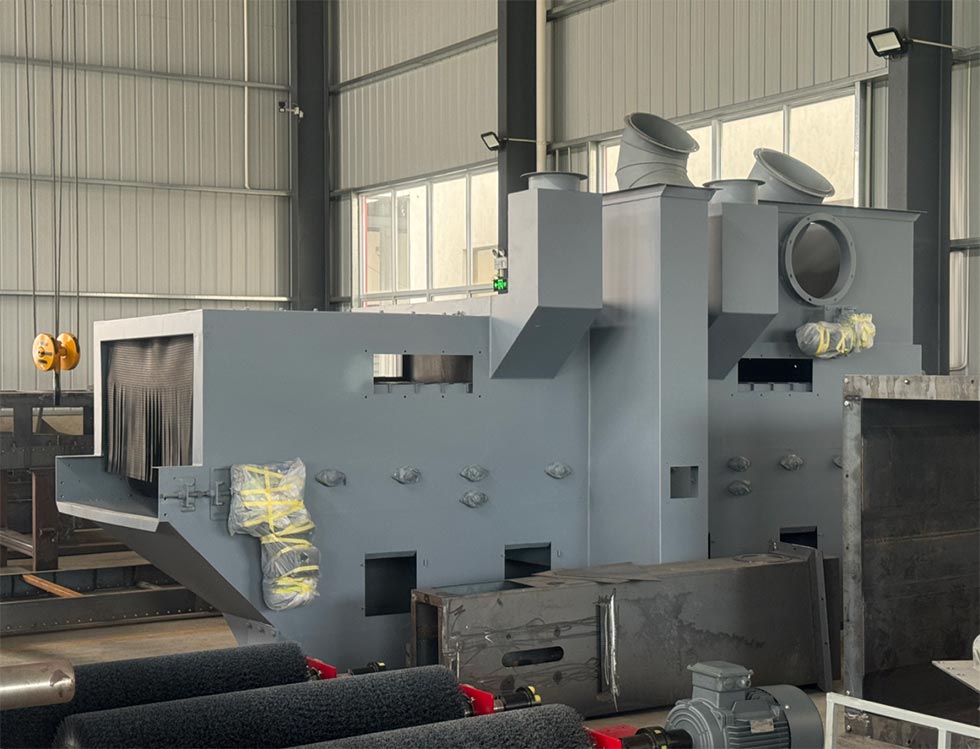

The PRO Cement Concrete Paver Block Shot Blasting Surface Treatment Machine is a centrifugal shot blasting system (mobile/fixed). A motor drives the shot blasting unit to rotate at high speed, projecting abrasive at 50-70 m/s onto the brick surface for surface treatment. It integrates abrasive circulation, dust collection, and automated conveying systems, enabling continuous dust-free operation.

Core Structural Components

1. Shot Blasting Main Unit: A high-wear-resistant centrifugal shot blasting unit that precisely controls the abrasive trajectory. The shot blasting chamber is equipped with wear-resistant protective plates to extend service life.

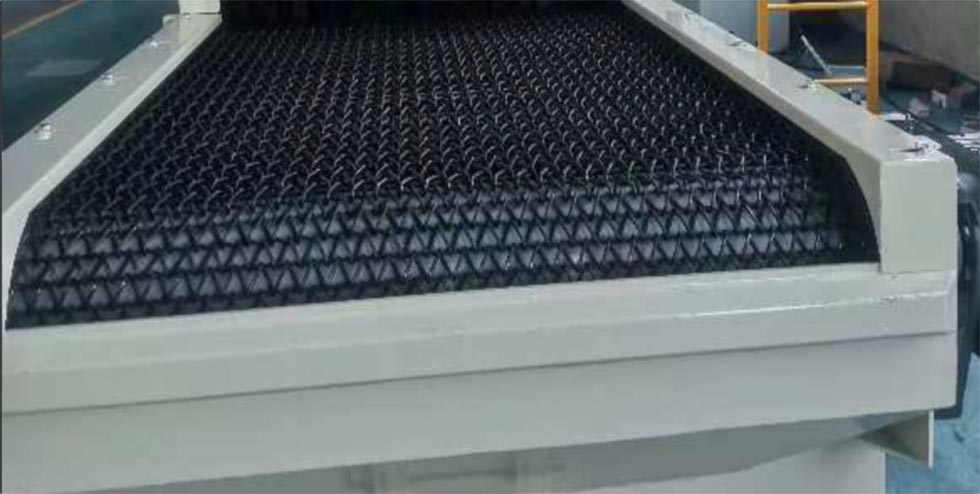

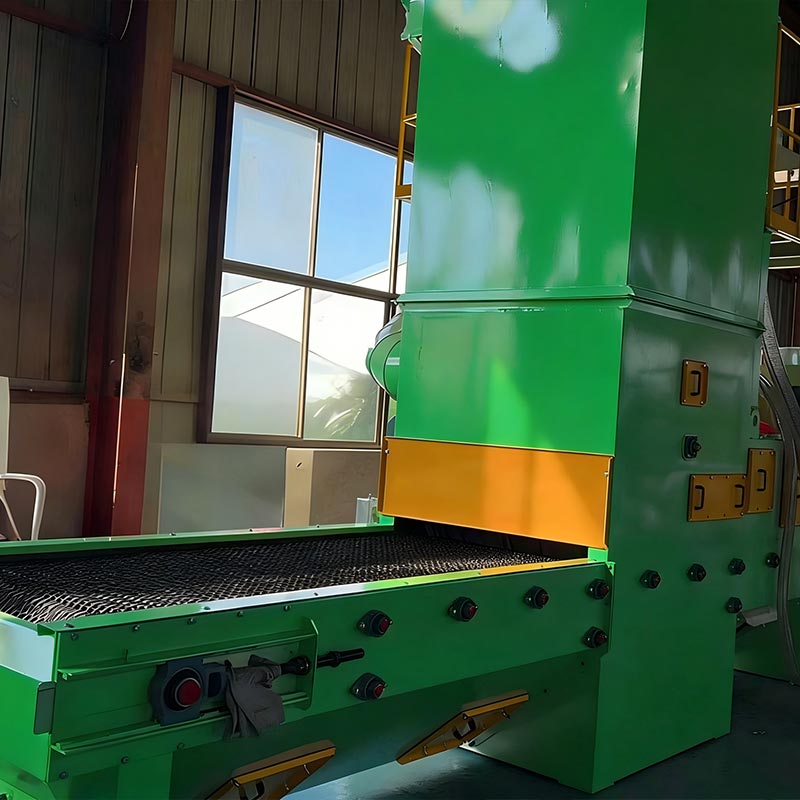

2. Automated Conveying System: Variable frequency speed control conveyor, speed adjustable from 0.5-10 m/min, stable load-bearing capacity, enabling continuous loading and unloading.

3. Abrasive Recycling System: Separation efficiency exceeds 98%, intact abrasive is recycled, and broken abrasive and impurities are automatically discharged.

4. Dust Collection and Purification System: Pulse dust collector paired with negative pressure fan, dust emission ≤30mg/m³, easy cleaning of the dust collection bin.

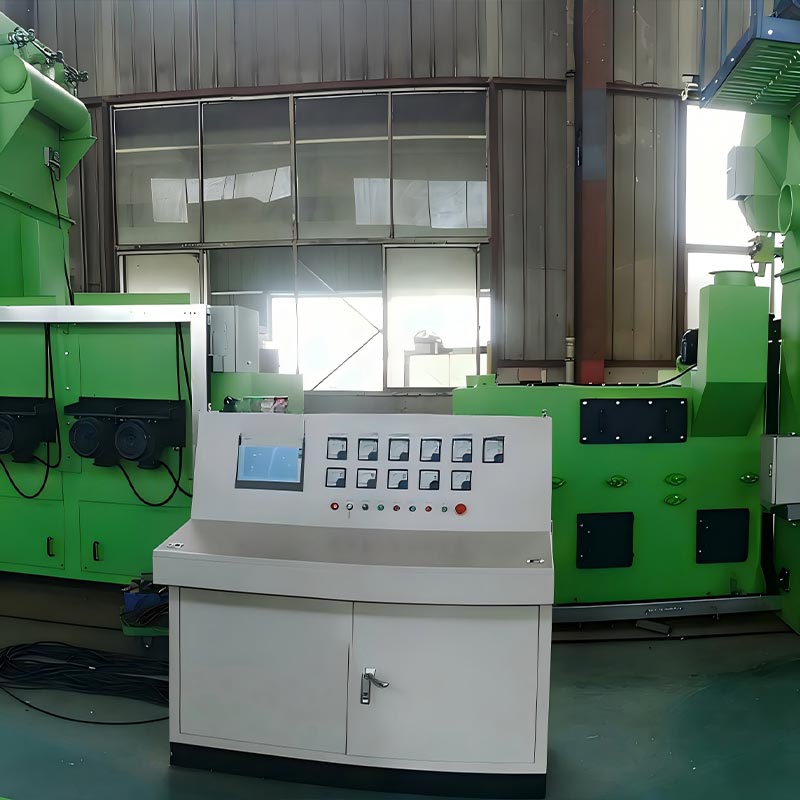

5. Electrical Control System: PLC control cabinet + touch screen, adjustable parameters, multiple protection functions, safe and simple operation.

6. Frame and Sealing System: Carbon steel welded frame, fully sealed design to prevent dust and abrasive leakage.

Working Principle

Bricks enter the shot blasting chamber via the conveying system. The shot blasting wheel projects abrasive at high speed onto the brick surface, removing impurities and forming a rough surface. After separation, the abrasive is recycled, and the dust is collected and treated, completing the entire processing flow.

Technological Advantages and Performance Guarantee

The Cement Concrete Paver Block Shot Blasting Surface Treatment Machine employs a dry processing technology, eliminating wastewater pollution and stress damage to the bricks. Parameters are flexibly adjustable to adapt to various brick types. The equipment is manufactured in a professional factory, and core components undergo rigorous testing, ensuring stable and reliable performance.

Brand and Service Guarantee

PRO leverages its position as the only qualified supplier in this niche market in China. All Cement Concrete Paver Block Shot Blasting Surface Treatment Machines are CE certified, guaranteeing reliable quality and long lifespan. Global after-sales service is provided, covering installation, commissioning, training, and maintenance, helping customers achieve both product and efficiency improvements.
