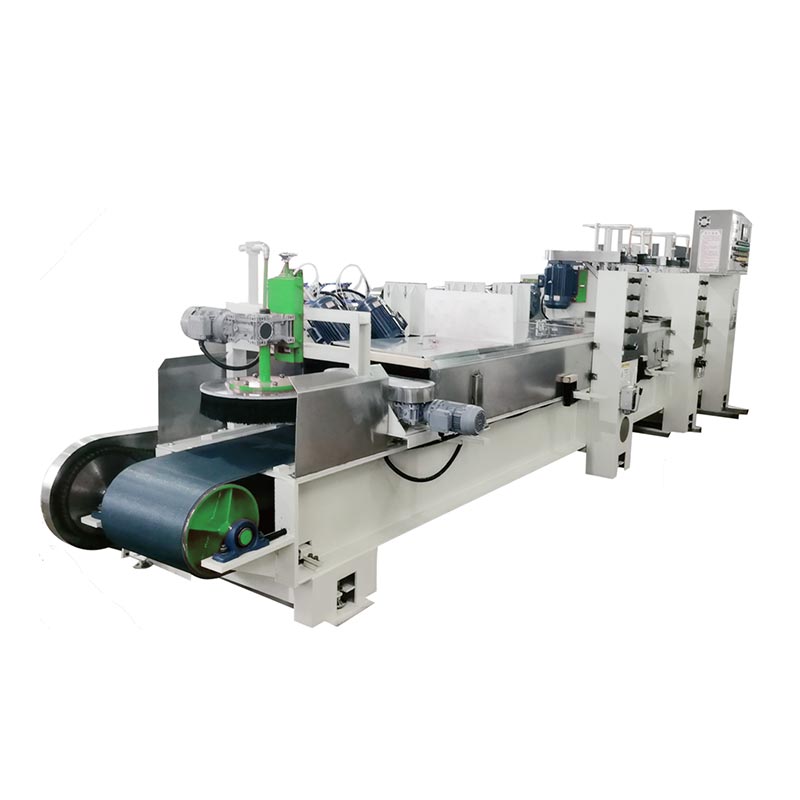

Terrazzo Tile Polishing Surface Treatment Machine

As a leading manufacturer in the industry, PRO leverages three core advantages to establish itself in the market: First, its Terrazzo Tile Polishing Surface Treatment Machine meets European standards and achieves internationally advanced quality; second, it is rooted in China's manufacturing industry, utilizing large-scale factory production to achieve cost advantages and provide high-performance equipment; third, it has accumulated years of practical industry experience, providing one-stop services including pre-sales consultation, customization, and after-sales maintenance, offering complete solutions for stone processing enterprises.

Core Product Characteristics

1. General Core Advantages

The Terrazzo Tile Polishing Surface Treatment Machine achieves fully automated continuous operation, with a daily capacity of 2000-3000 square meters, 10-20 times more efficient than manual labor; it can achieve a mirror gloss of 85-95 degrees, flatness deviation ≤0.1mm/m, and uniform thickness without ripples. Utilizing wet processing, water circulation, and dust collection technology, dust emissions are ≤5mg/m³, meeting environmental standards; core components support 12 hours of continuous operation without overheating, with a service life ≥5 years, and it is compatible with various slabs such as cement-based imitation stone tiles, natural marble, and terrazzo.

2. Unique Characteristics of Cement-Based Stone-Imitation Tiles

The Terrazzo Tile Polishing Surface Treatment Machine is compatible with high-strength stone-imitation tiles (C40-C60) with a Mohs hardness of 6-7. These tiles are wear-resistant and produce no surface dust. The polishing process preserves the original textures such as bush-hammered and flamed surfaces. The equipment investment is only 1/3 that of a natural stone polishing line, and consumable costs are reduced by 40%, offering outstanding cost-effectiveness.

3. Unique Characteristics of Natural Marble

Combined with resin grinding discs and nano-polishing liquid, it achieves a scratch-free, high-transparency mirror-like effect. A dense crystalline layer is formed during polishing, enhancing stain resistance, wear resistance, and impermeability. It can process irregular, curved, and linear profiles, meeting the processing needs of complex geometric stone materials.

Product Application Scenarios

1. Mass Production of Terrazzo Tiles

The Terrazzo Tile Polishing Surface Treatment Machine efficiently completes automated continuous processing of terrazzo tiles. The high-gloss mirror effect and precise flatness significantly improve product quality, meeting the needs of large-scale market demands.

2. Cement-Based Engineering Stone Processing

Ensures the wear-resistant and dust-free surface of C40-C60 imitation stone bricks, preserving the original texture. Low investment and low material costs make it the preferred choice for small and medium-sized cement-based engineering stone manufacturers.

3. Natural Marble Fine Processing

Achieves scratch-free mirror polishing and crystallization hardening of marble, extending product lifespan; flexibly adapts to customized processing of irregularly shaped stones, meeting personalized architectural decoration needs.

3. Paving Brick/Cutting Stone Production Line Support

The Terrazzo Tile Polishing Surface Treatment Machine is an ideal supporting equipment for wet and dry pressing production lines for cusp stones and paving bricks, improving product surface smoothness and flatness, adapting to the high-quality construction needs of municipal roads and landscape projects.

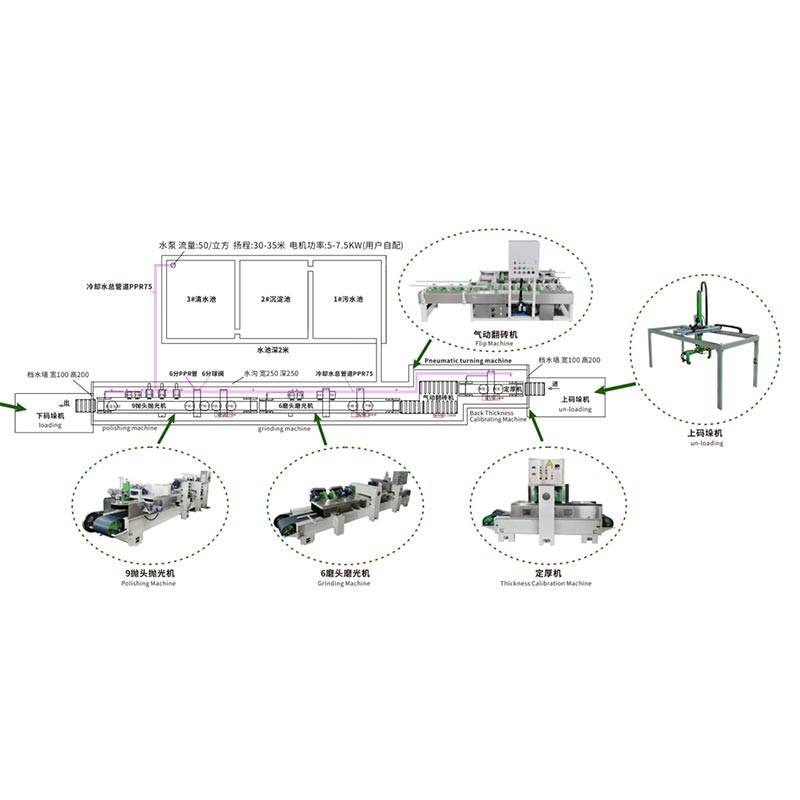

Equipment Structure

1. Feeding System: Automatic feeding, positioning, and conveying; variable frequency speed control 1-10 m/min; adaptable to 300×300mm to 1200×2400mm sheet materials;

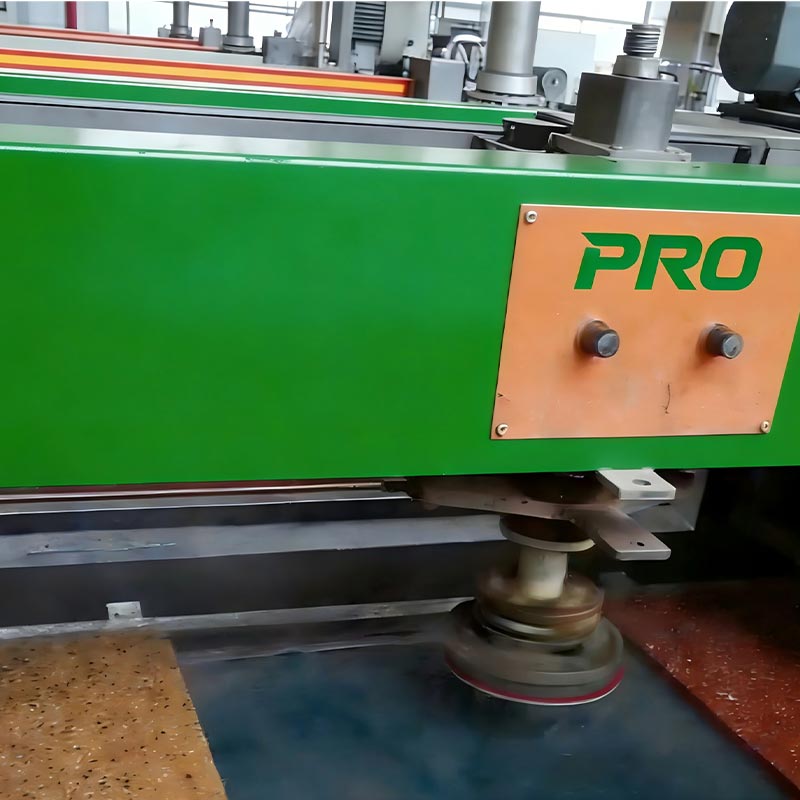

2. Main Polishing Unit: 8-20 independent variable frequency planetary/cantilever grinding heads; polishing pressure adjustable from 0.5-3MPa;

3. Transmission System: Siemens/Mitsubishi Electric + planetary gearbox; transmission efficiency ≥95%; noise ≤75 decibels;

4. Cooling Water Circulation: Central spray + multi-stage filtration; water consumption ≤0.5 liters/square meter; water circulation rate ≥90%;

5. Control System: PLC + touch screen operation; supports parameter storage, fault diagnosis, and one-key mode switching;

6. Discharge and Palletizing: Automatic drying, detection, and palletizing; connects to downstream cutting and packaging lines.

Core technical parameters

Working Principle

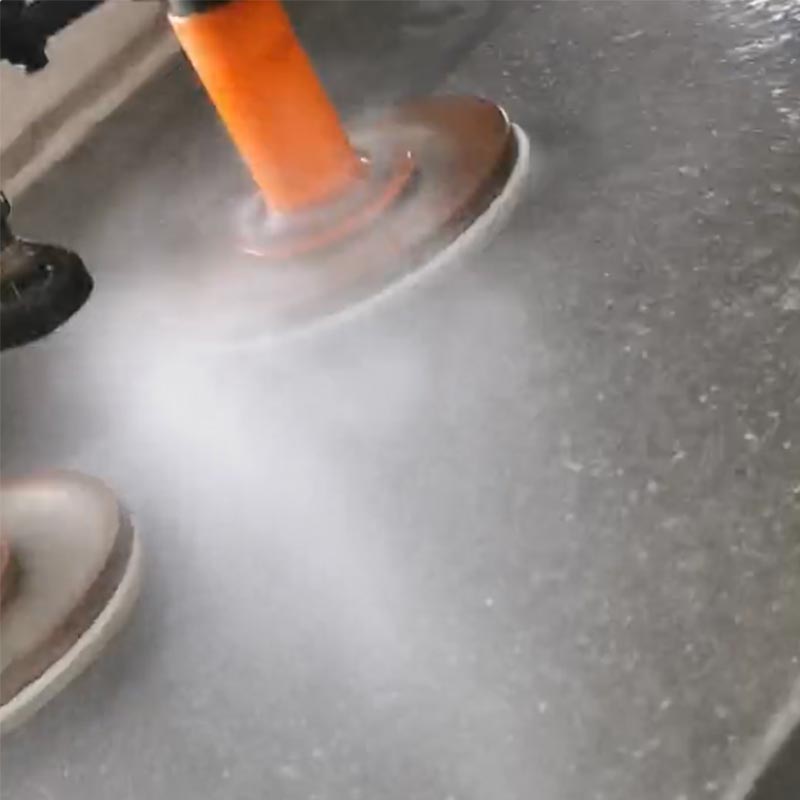

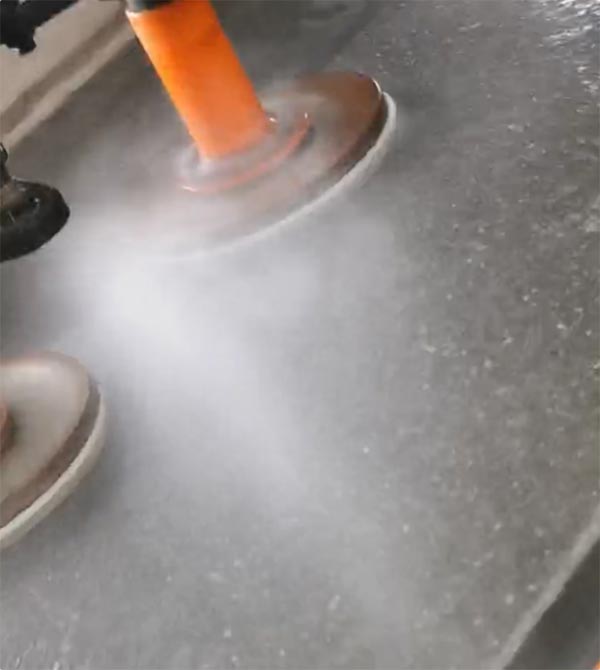

This product integrates mechanical grinding and chemical polishing processes, employing a tiered treatment method to achieve refined stone surface treatment: Mechanical grinding uses a motor-driven diamond/resin grinding disc (800-3000 rpm) to micro-cut and remove the rough surface layer; Chemical polishing utilizes polishing liquid/crystallizing agent to form a dense crystalline layer under pressure and frictional heat. Through five tiered processes—coarse grinding, medium grinding, fine grinding, polishing, and crystallization—nano-level smoothness and high gloss are achieved.
