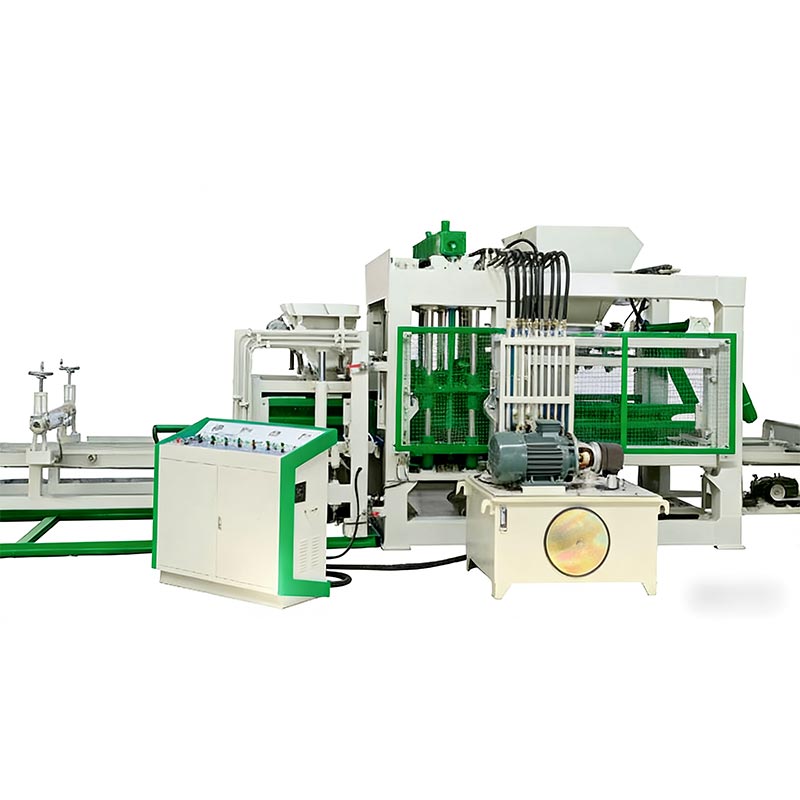

Hollow Block Brick Making Machine

As a professional manufacturer from China, PRO's Hollow Block Brick Making Machine series boasts mature technology, stable performance, and environmental efficiency. It can meet various production needs from small processing plants to large factories, making it the preferred equipment for large-scale hollow brick production. The entire machine adopts German vibration technology, wear-resistant components, and an environmentally friendly and energy-saving design. It is highly adaptable to raw materials, can utilize large amounts of industrial solid waste, and is widely used in construction, municipal, and landscaping engineering fields.

Product Series

PRO Hollow Block Brick Making Machine boasts a complete product matrix to suit various production capacity and quality requirements:

1. QT Series Classic Models

Models such as QT12-15 and QT10-15 balance efficiency and cost, suitable for small and medium-sized enterprises, and can stably produce conventional hollow bricks.

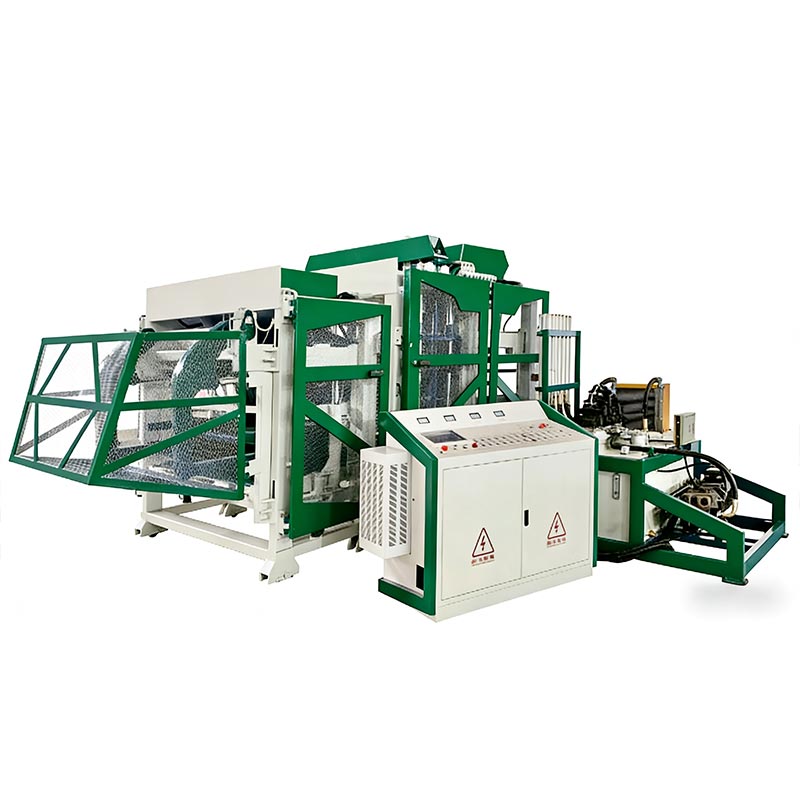

2. KT Series Servo Intelligent Models

Models such as KT12-15 and KT10-15 utilize servo drive technology, offering high molding accuracy and low energy consumption, suitable for mid-to-high-end high-quality production.

3. MT Series Palletless Models

Models such as MT8-25 and MT12-25 employ a palletless process, eliminating pallet costs, improving continuity and space utilization, and suitable for large-scale production.

Product Parameter (Specification)

Product Advantages

1. Intelligent Control System

Hollow Block Brick Making Machine uses a self-developed control system with imported PLC and a color touchscreen, making operation simple. It features real-time monitoring, fault self-diagnosis, and alarm functions; automatically stops and displays solutions in case of abnormalities; supports one-click switching of production parameters, improving changeover efficiency.

2. High-Performance Vibration and Hydraulic System

Utilizing imported German vibration technology, some models are equipped with servo multi-axis vibration, resulting in strong and uniform excitation force, high block density, and good strength. The hydraulic system features a dual-drive design, using internationally renowned components, ensuring stable and durable operation with low maintenance frequency.

3. High-Efficiency Material Placement System

The Hollow Block Brick Making Machine employs a suspended master-slave material cart, resulting in low running resistance, fast material placement speed, and reduced mold impact. The material cart uses imported Hardox wear-resistant steel plates, with a service life 3-5 times longer than ordinary steel plates. High-end models are equipped with a grid-driven precision material placement system, eliminating uneven material distribution.

4. Environmentally Friendly and Energy-Saving

It can incorporate large quantities of industrial solid waste such as fly ash, slag, and steel slag, with a blending ratio of over 60%, reducing raw material costs while achieving resource reuse, complying with environmental policies. The equipment features noise reduction and vibration damping designs, improving the workshop production environment.

Application Areas

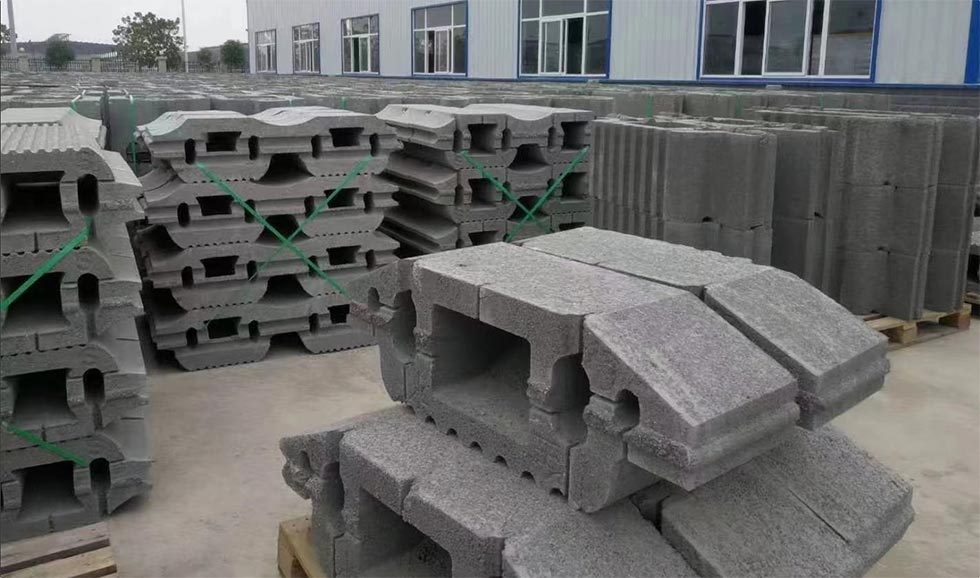

1. Building Walls: Insulating blocks, lightweight blocks, decorative blocks, etc.

2. Municipal Roads: Permeable bricks, slope protection bricks, curb stones, plaza bricks, etc.

3. Special Products: Sound insulation blocks, fireproof blocks, precast floor slabs, etc.

Real-world Application Case

A large building materials supplier in Southeast Asia built a new hollow brick production line, requiring high product strength, precise dimensions, and the ability to utilize local fly ash and slag to reduce costs.

The customer selected the PRO KT10-15 servo intelligent brick-making machine. After debugging:

1. The molding cycle stabilized at 16 seconds, with a daily output exceeding 80,000 hollow bricks;

2. The product qualification rate exceeded 98%, and the strength increased by 20%;

3. The proportion of industrial solid waste used reached 60%, reducing raw material costs by 25%;

4. The intelligent system significantly reduced downtime, lowering labor costs by 60%.

After the project went into operation, the customer consistently made additional purchases, becoming a key partner of PRO in the local market.

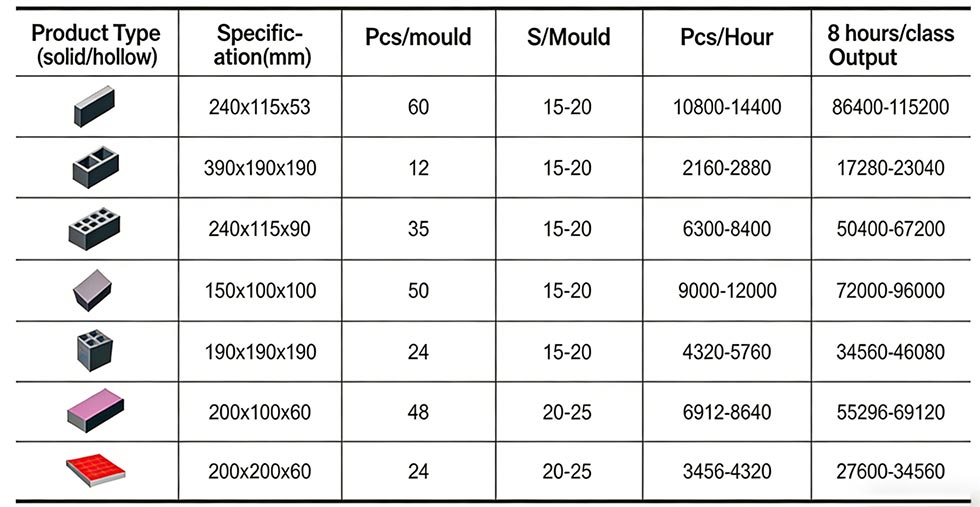

The following is a production output table for this model of brick machine.

Workshop-1
