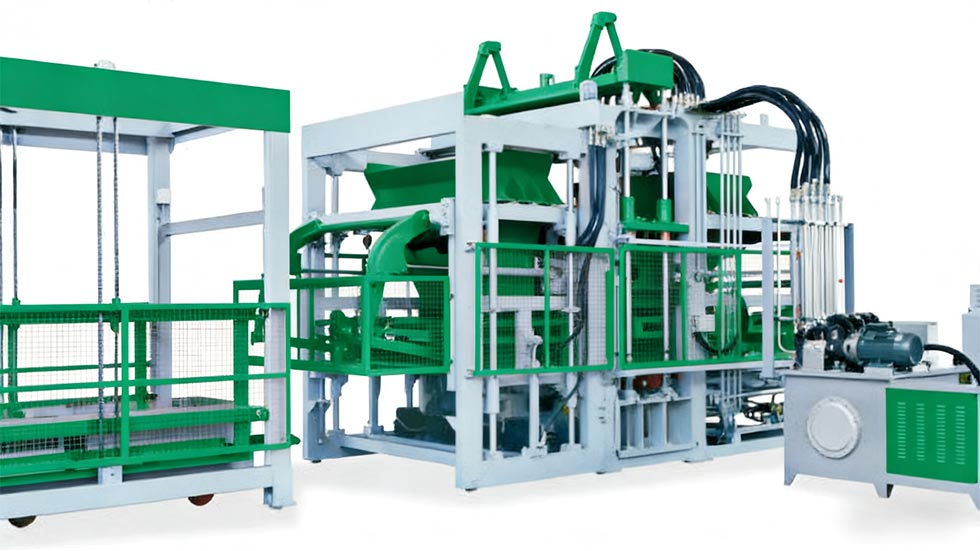

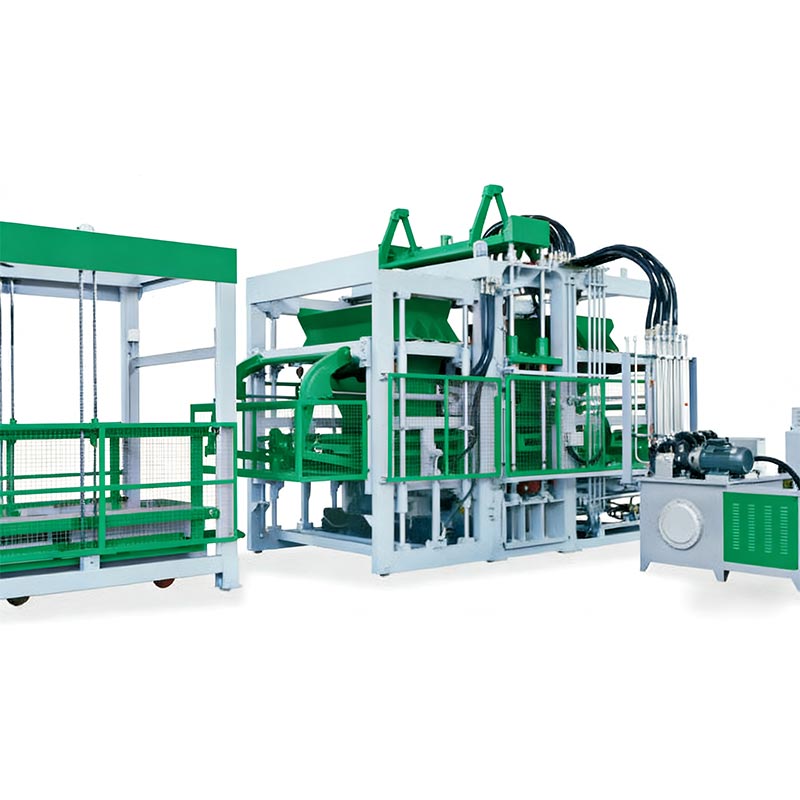

Paver Block Brick Making Machine

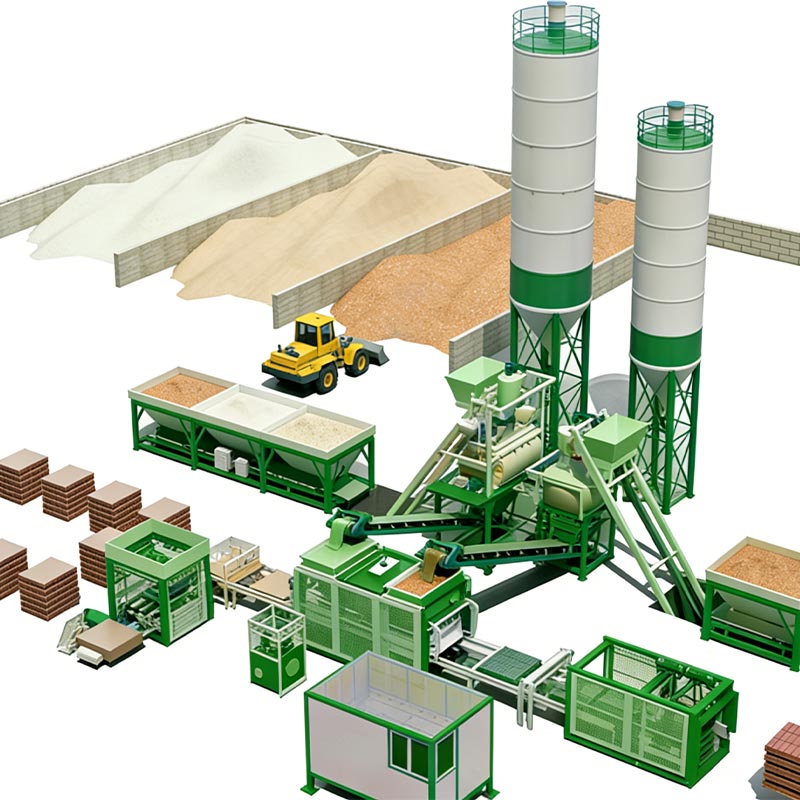

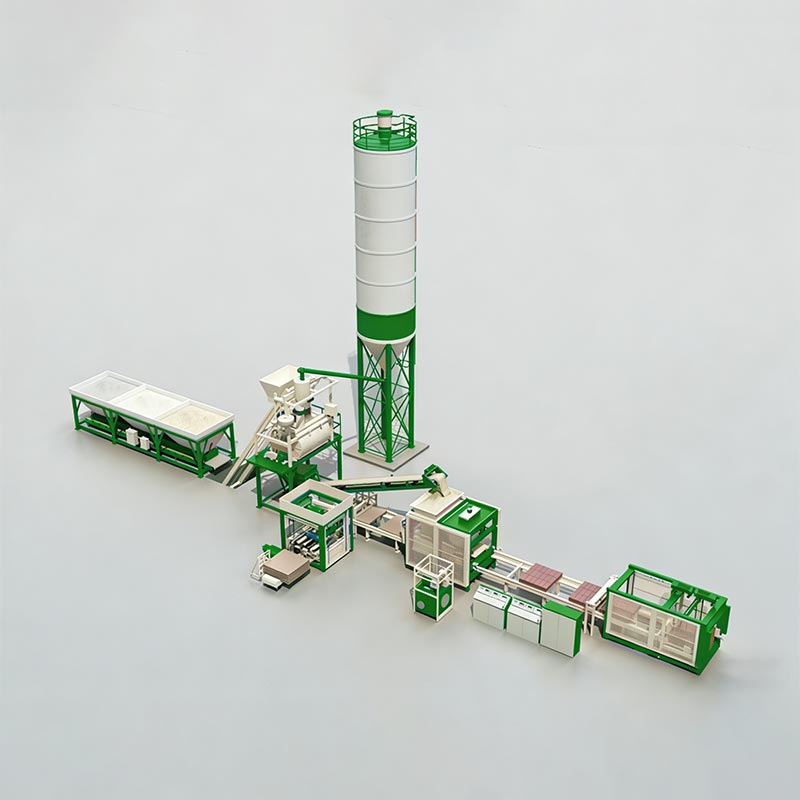

The PRO Paver Block Brick Making Machine is a highly automated professional production equipment and a core piece of equipment for modern infrastructure projects. As a professional supplier and leading manufacturer, PRO deeply integrates its self-developed control system with hydraulic and mechanical systems, achieving fully automated production from batching to finished product output, making it particularly suitable for start-up block factory projects.

Product Parameter (Specification)

Product Feature

1. Strong Raw Material Adaptability

It can utilize industrial solid waste such as fly ash, slag, and recycled aggregates from construction waste, recycling resources and reducing production costs.

2. High Molding Efficiency

The Paver Block Brick Making Machine utilizes a hydraulic + vibration composite molding technology, resulting in a short molding cycle and high output, meeting the needs of large-scale projects.

3. Diverse Product Range

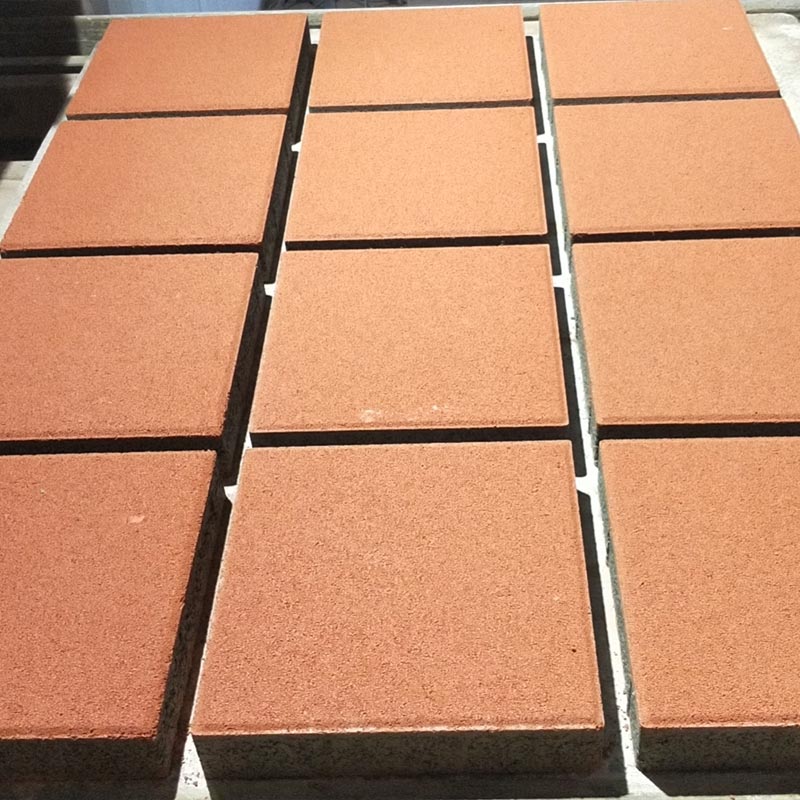

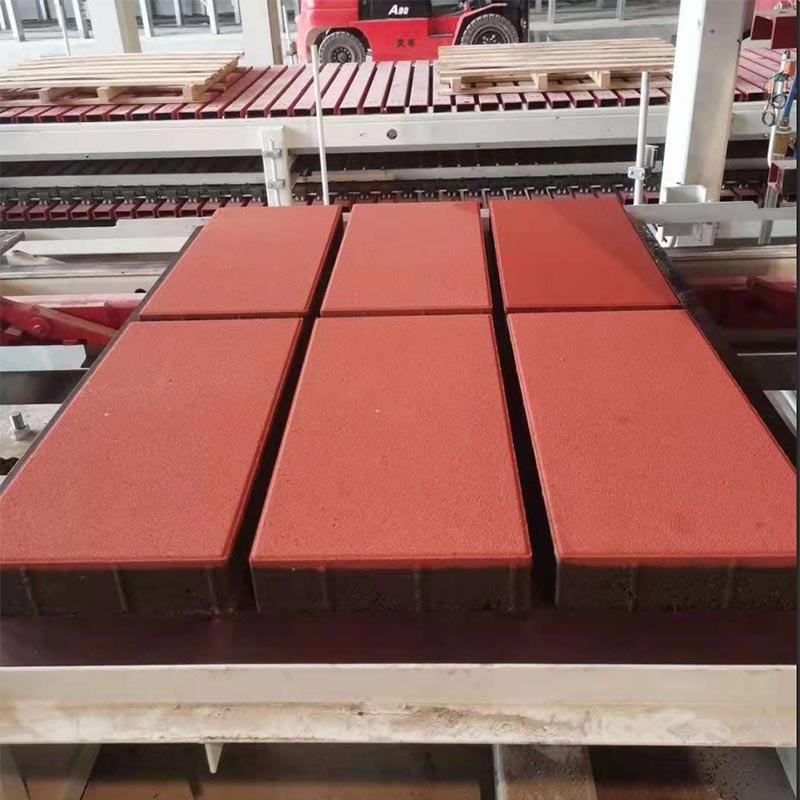

By changing the molds, it can produce various specifications of products, including paving bricks, curb stones, slope protection bricks, grass pavers, permeable bricks, and interlocking bricks.

4. High Degree of Automation

Equipped with a PLC control system, it achieves automatic material batching, material distribution, molding, and stacking, reducing manual labor and ensuring more stable production.

5. Stable Molding Quality

The Paver Block Brick Making Machine uses high-pressure vibration molding, resulting in bricks with high density, uniform strength, excellent freeze-thaw resistance, and impermeability, meeting national building material standards.

6. Energy Saving and Environmental Protection

Closed production reduces dust and noise pollution; some models are equipped with a waste heat recovery system, further reducing energy consumption.

Application Areas

1. Municipal Road Engineering: Producing paving bricks, permeable bricks, curb stones, etc., for use in urban roads, squares, and pedestrian streets.

2. Landscape Engineering: Production of grass pavers and landscape bricks for park and residential greening and ecological landscaping.

3. Water Conservancy Slope Protection Engineering: Production of ecological interlocking slope protection bricks for river and embankment slope protection to prevent soil erosion.

4. Building Supporting Engineering: Production of plaza bricks and parking lot bricks to improve ground load-bearing capacity and wear resistance.

5. Sponge City Construction: Primarily producing permeable bricks to facilitate rainwater infiltration and drainage, alleviating urban flooding.

Core Structural Advantages

1. Molding Principle

 Concrete material enters the feeding box through the hopper, is evenly filled into the mold cavity, and vibrated to compact it; after being pressed and formed by high-pressure vibration by the press head, the mold is lifted for demolding, completing continuous automated production.

2. Vibration System

The vibration table is made of Q345B/HARDOX steel with a modular design; the servo motor has fast vibration response and high molding density; the vibration table and motor are flexibly connected to protect the equipment and extend its lifespan.

3. Hydraulic System

The Paver Block Brick Making Machine is equipped with a 30kW motor, internationally brand pumps and valves, and features flange connections, dual proportional valves, a constant force pump, and a water-cooling system. Installation and maintenance are convenient, and operation is stable and energy-efficient.

Real-world Application Case Study

1. Nairobi Block Factory Project, Kenya

A newly established building materials company planned to build a block production line but lacked production experience. They needed equipment that was easy to operate, offered a wide variety of products, and was compatible with local raw materials.

After selecting the PRO paving brick making machine, the daily output reached over 40,000 bricks, labor was reduced by more than 60%, and the scrap rate was significantly lowered. The Paver Block Brick Making Machine successfully supplied key projects such as local expressways and residential communities, enabling the company to rapidly grow into a large-scale professional factory in the region and significantly enhance its market competitiveness.

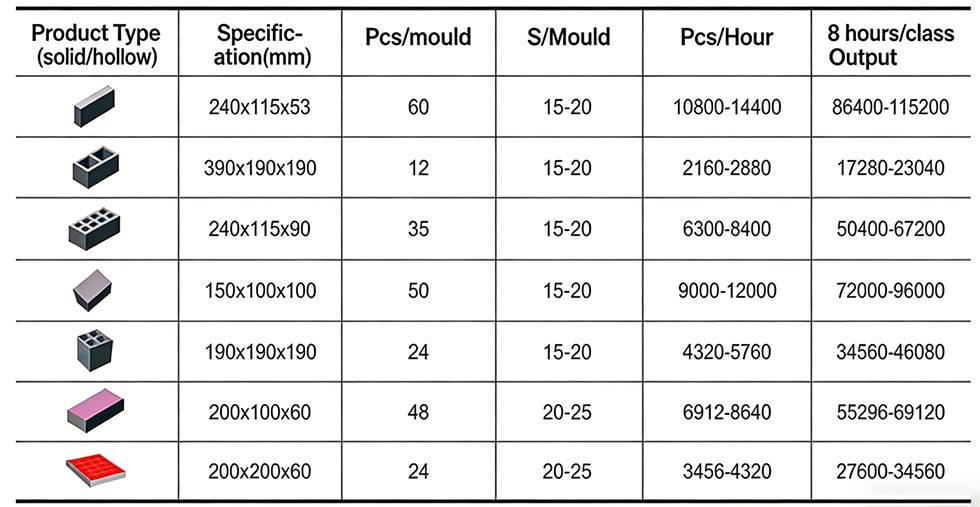

The following is a production output table for this model of brick machine.
